KD4-3/8-A, Festo Pneumatic Quick Connect Coupling Brass 3/8in Threaded, Муфта

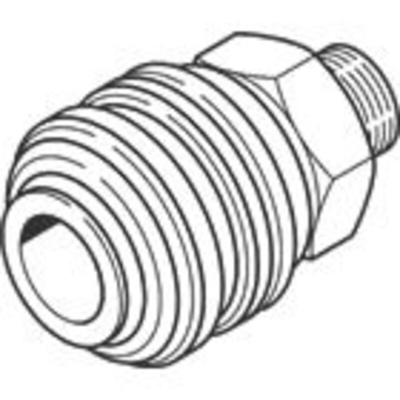

Festo Pneumatic Quick Connect Coupling Socket

The Festo pneumatic quick connect female coupling socket is self-closing, with a nominal size of 10mm. It is made from nickel plated brass. This coupling socket has a G 3/8in Male threaded end connection. Plug-in coupling with quick coupling socket KD and quick coupling plug KS, shut-off at one or both ends. You need to push the plug into the socket to lock the coupling. The plug automatically engages with an audible click when in a specific position. To unlock, push the releasing sleeve. The socket has standard nominal flow rate of 1274l/min.

Features and Benefits

• Tolerance for nominal tightening torque is ±15%
• Operating temperature ranges between -10°C and 60°C
• Class 1 corrosion resistance
• Lubricated operation reduces friction

Applications

• Dry indoor applications
• Used for transport application
• Storage protection
• Used in chemical fertilizer pipe

Certifications

• ISO8573-1:2010

Datasheet KD4-3/8-A
