SMTO-4U-PS-S-LED-24, Festo Proximity Sensors Pneumatic Sensor, IP67, 10 → 30V dc, PNP Operation, Датчик

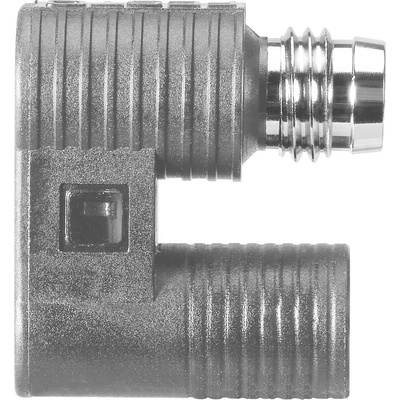

FESTO Proximity Sensor - SMTO-4U-PS-S-LED-24

Detecting the presence and proximity of an object is easily achieved with FESTO's SMTO proximity sensor. Through the use of light-emitting diodes that are integrated into the protective circuit, this sensor is able to detect without any physical contact. Forming part of the SMTO-4 range of attachable magneto-inductive cylinder switches this sensor has magneto-inductive measuring principles, u-shaped housing, LED switching status indication and a cable length of 2.5 m.

Features & Benefits

• Brought to you without a mounting kit
• RCM mark authorisation
• Free of copper and PTFE
• Magnetic inductive measuring principle
• -25 to 70°C ambient temperature
• PNP switch output
• The switching element function is a normally open contact
• Switching on-time is 0.5 ms and the switch-off time is 0.5 ms
• 200 mA maximum output current
• Pulsing short circuit strength
• Polarity protection for all electrical connections
• Plug, M8x1 and 3.pin electrical connections
• Axial connector exit direction

What is an inductive proximity sensor?

An inductive proximity sensor provides non-contact detection of metallic objects, some sensors can target both ferrous and non-ferrous metals, while others specialise in sensing only one type.

Datasheet SMTO-4U-PS-S-LED-24

SMX-4 Proximity Sensors
