38290, Pegler Yorkshire Copper Pipe Fitting, Push Fit Elbow for 22mm pipe

Pegler Yorkshire Press Elbow

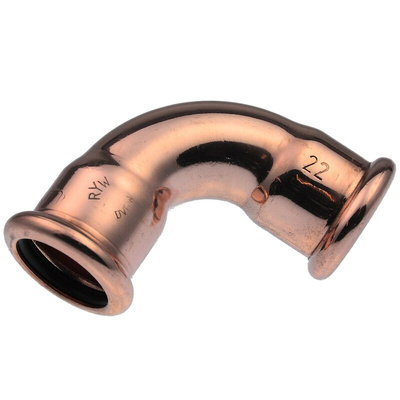

The Pegler Yorkshire 22mm 90° copper S12 elbow is used with hard and half-hard copper tubes. It has a press-fit connection type.

Features and Benefits

• Ambient temperature ranges between 15°C and 95°C
• Clean, rapid and heat-free jointing. No complicated clamping techniques, long preparation procedures or waiting for adhesive to dry
• Electrical continuity assured when jointing process is complete
• Leak before press feature
• Major savings in installation time and cost as compared to traditional jointing methods
• No carbon deposits, internal solder runs or flux residue. Reduced risk of corrosion
• No hot works required
• Operating pressure is 16bar
• Perfectly clean internal bore-less finishing or cleaning required
• Reduced flushing requirement
• Safe as no naked flames
• System does not need to be dry for effective jointing

Applications

• Domestic maintenance, refurbishment and new build
• Large-scale public sector projects

Certifications

• BS 8537:2010
• EN 1787
• WRAS approval
• DVGW approval

Datasheet 38290
