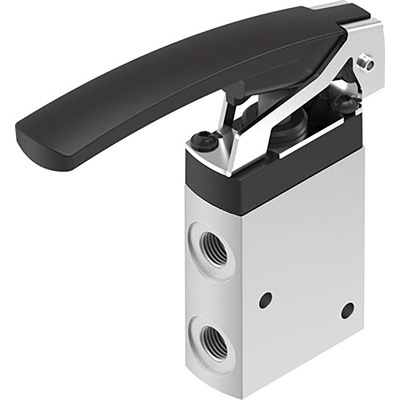

VHEF-LT-M32-M-G18, Festo Plunger 3/2 Pneumatic Manual Control Valve VHEF Series, G 1/8, 1/8in, 4500009, Клапан

Festo Pneumatic Manual Control Valve, Reversible Type, 750L/min Standard Flow Rate - VHEF-LT-M32-M-G18

Stay on top of your system's airflow with this 3/2 pneumatic manual control valve from Festo. Thanks to its monostable operation, the device automatically returns to its resting position when it's unpowered, so you get precise switching. Manually operating the unit is easy, as it has a simple plunger actuator fitted to a lever. With a flow rate of up to 750L/min, this valve reliably handles high-volume pneumatic systems.

Features & Benefits

• Throttleable exhaust for quick pressure relief
• Standard G1/8 threaded pneumatic connection, so it seamlessly slots into your existing setup
• Housing made of anodised wrought aluminium alloy for resistance to corrosion, impact and wear
• Pre-cut mounting holes minimise preparation work for hassle-free installation
• Reversible flow function for versatile air control and releasing excess pressure build-up

Applications

• Cranes and lifts
• Construction industry
• Mining equipment

What does 3/2 mean in a pneumatic control valve?

It indicates the number of ports and switch positions it has. In a 3/2 valve like this, there are three connection ports and two positions, so a single valve handles both actuation and release.
