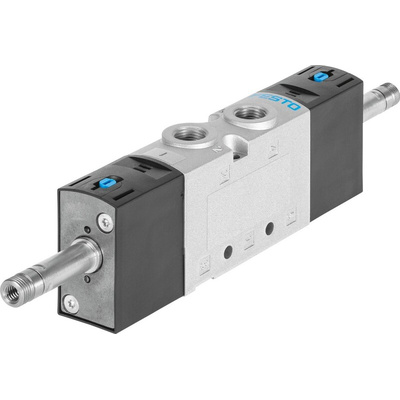

VUVS-L25-B52-D-G14-F8, Festo 5/2 Pneumatic Solenoid Valve - Solenoid G 1/4 VUVS Series, 575516, Клапан

Festo Pneumatic Solenoid Valve, 6.9mm Nominal Size, 5/2 Function - VUVS-L25-B52-D-G14-F8

Want an assembly that lets you easily control the flow of compressed air? Add this Festo pneumatic solenoid valve to your setup. It's activated by electricity, which opens or closes the valve, and is bistable, so you don't have to switch functions by hand. Harsh workplaces are no trouble for the unit, as it does its job reliably in temperatures between -10°C and +60°C. You can install it on a manifold rail or use through-hole mounting to achieve a firm fix, even in shaky environments.

Features & Benefits

• Throttleable exhaust allows smooth operation and customisable speed
• Die-cast aluminium body withstands challenging settings for a long service life
• Operating pressure range between 1.5 and 10 bar suits medium-duty applications

Applications

• Medical equipment
• Industrial automation
• Packing plants

What flow rate can this valve handle?

This pneumatic solenoid valve has a maximum flow rate of up to 1,300L/min, so it's an ideal option for jobs that need large volumes of air.

Can I use this device in the event of a power failure?

Yes, this unit features a manual override setting, which allows you to control the switch when there's no power.
