VMEF-ST-M32-M-G18, Festo Plunger 3/2 Pneumatic Manual Control Valve VMEF Series, G 1/8, 1/8in, 8031295, Клапан

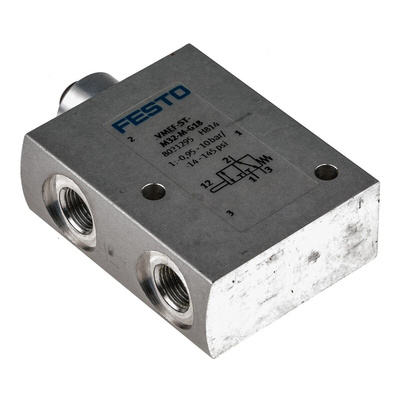

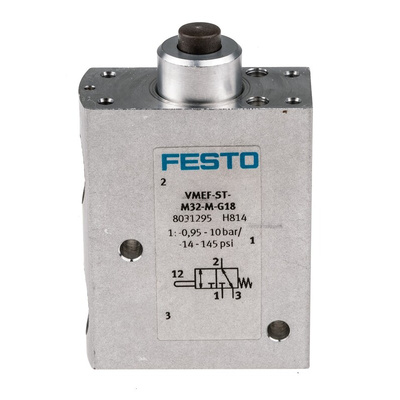

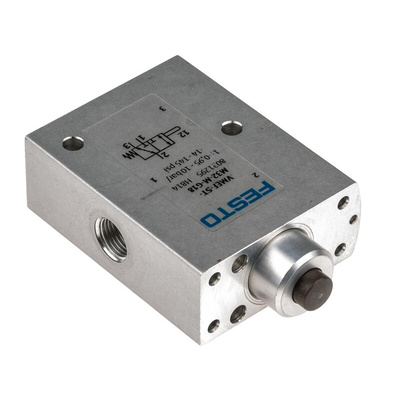

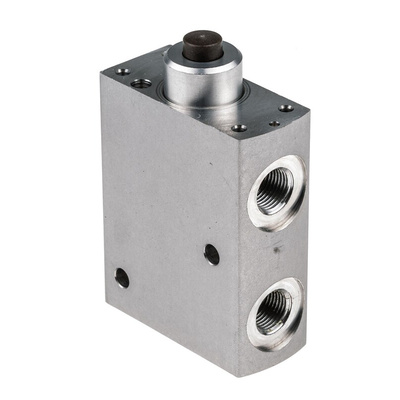

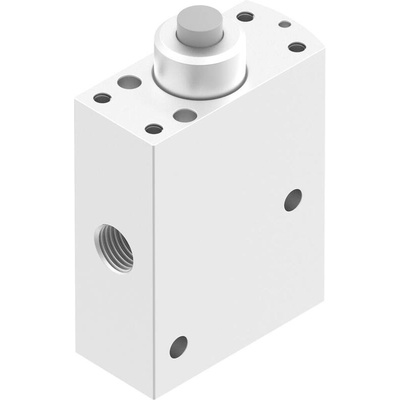

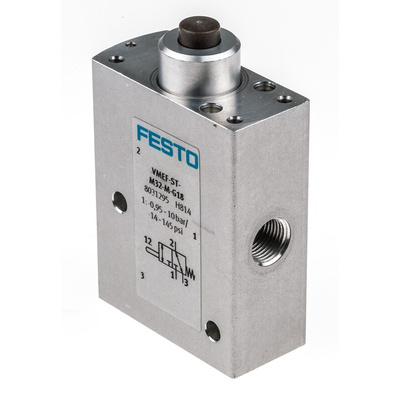

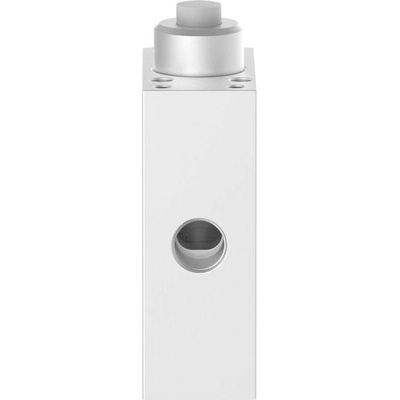

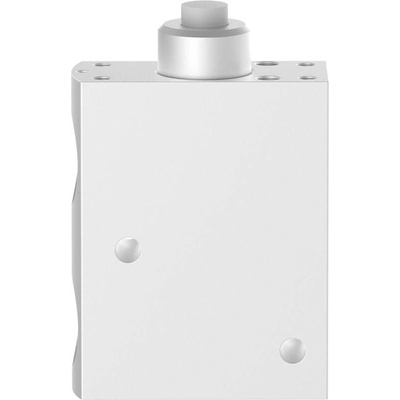

Festo Pneumatic Manual Control Valve, 10 Bar Maximum Operating Pressure, 20mm Width - VMEF-ST-M32-M-G18

Get a firm hold on airflow through your system with this pneumatic manual control valve from Festo. It has a 3/2 plunger function, so you get a faster response time than a spool control mechanism. With a 46N actuating force, the valve can open or close with minimal delay, boosting efficiency. Thanks to a wide operating temperature range between -10°C and +60°C, you can trust it to withstand the demands of extreme environments. Through-hole mounting ensures a secure hold, enabling you to use this device in settings that experience frequent vibration.

Features & Benefits

• Anodised wrought aluminium alloy housing for resistance to corrosion and impact
• Reversible flow direction means it can supply or exhaust air
• Standard G1/8 port thread connection offers wide compatibility

Applications

• Material handling
• Food and beverage processing
• Automotive assembly plants

How much does this control valve weigh?

It weighs just 116g, making it a lightweight option that's easy to handle.

What does a mechanical spring reset do?

The mechanical spring reset ensures that the valve returns to its default position when the control signal is removed. This provides a fail-safe mechanism that helps prevent unintended operation.

Manual Control Valves

Datasheet VMEF-ST-M32-M-G18

VMEF Series Pneumatic Valve Datasheet
