VUVG-L18-M52-RT-G14-1R8L, Festo 5/2 Solenoid Valve - Solenoid G 1/4 VUVG Series 24V dc, 8031531, Клапан

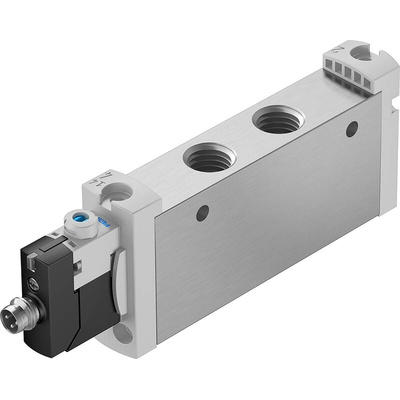

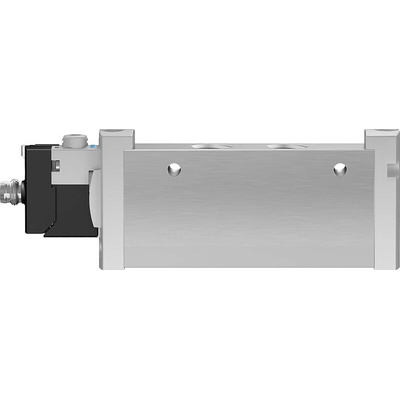

Festo Pneumatic Solenoid Valve, 5/2 Function, G1/4 Thread - VUVG-L18-M52-RT-G14-1R8L

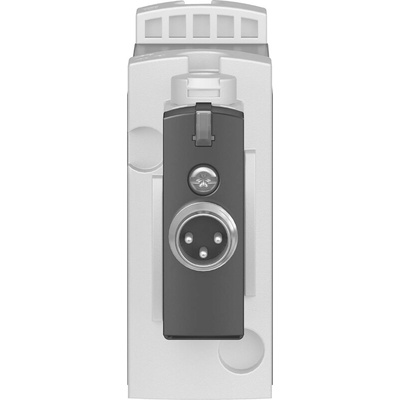

Regulate the flow of compressed air in your pneumatic system with this solenoid valve from Festo. It directs the airflow by moving in two positions to open or close its five ports. Robust HNBR and NBR seals prevent leakage in the valve to minimise waste. For quick installation of the device, you can directly connect it to a power source using its built-in electrical connection plate. A low power consumption rating of 1W means you'll find this component energy-efficient even under demanding conditions.

• Shock and vibration resistant to withstand heavy-duty systems
• Can be lubricated for increased efficiency
• IP65 rating means it's protected from dust and low-pressure water jets
• Comes with through-holes for quick mounting
• Wrought aluminium-alloy body is corrosion-resistant for extended service life

Applications

• Industrial pumps
• Manufacturing industry
• Robotics
• Medical technology
• Automotive industry

How do I reset this solenoid valve?

This solenoid valve comes with robust mechanical springs that automatically return it to its rest position, eliminating the need for a manual reset. For versatility, it also features air springs which use the force of the compressed air in the system to reset the valve to its original state.

Datasheet VUVG-L18-M52-RT-G14-1R8L

Brochure - valves and valve terminals
