VUVS-LT25-M52-MD-G14-F8, Festo 5/2 Pneumatic Solenoid Valve - Solenoid G 1/4 VUVS Series, 8035181, Клапан

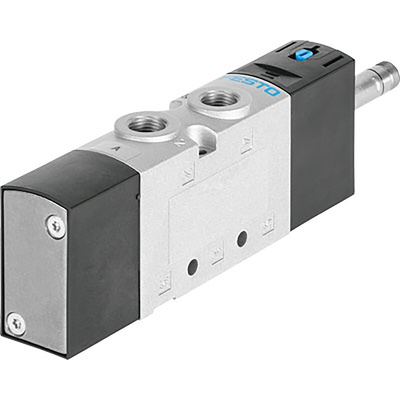

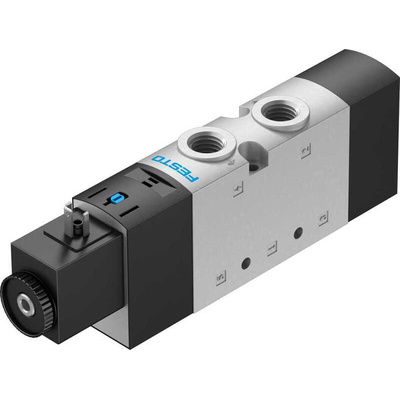

Festo Pneumatic Solenoid Valve, 5/2 Function, G1/4 Thread - VUVS-LT25-M52-MD-G14-F8

Control the movement of compressed air in your pneumatic system using this solenoid valve from Festo. It has five ports, which it opens and closes by moving air in two directions. You can manually override this device by detenting or pushing it, making it convenient to operate when maintenance is needed. A 22ms switching time off and a 13ms switching time on means you can rely on this valve for a fast-acting response. It's compatible with lubricated operation for smoother action and an extended service life.

• Operating pressure range between 2.5 and 10 bar for use in low-pressure settings
• Resistant to shock and vibration to function in demanding conditions
• Tough aluminium die-cast body keeps corrosion at bay
• Maximum flow rate of 1,000l/min for use in high-flow applications
• Wide operating temperature range between -10°C and +60°C to withstand harsh environments

Applications

• Heating and cooling systems
• Medical technology
• Oil and gas industry

How do I mount this pneumatic solenoid valve?

You can mount this solenoid valve on a manifold block for quick assembly. It features pre-drilled through-holes in its body for ease of installation.

Datasheet VUVS-LT25-M52-MD-G14-F8

VUVS Datasheet

Brochure - Valve and valve manifold assembly VS
