VMEF-RT-M32-M-G14, Festo Roller Lever 3/2 Pneumatic Manual Control Valve VMEF Series, G 1/4, 1/4in, 8047095, Клапан

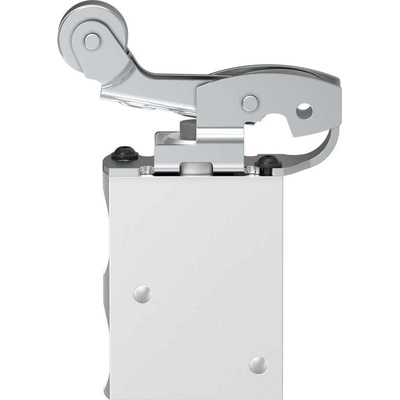

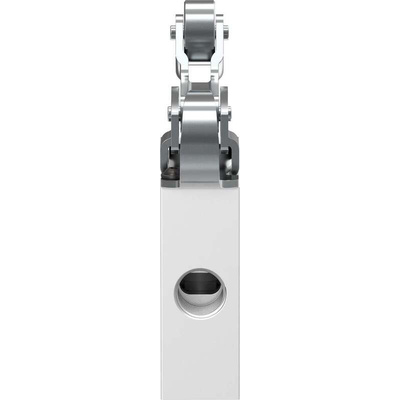

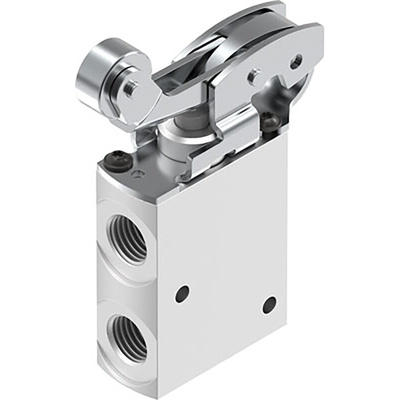

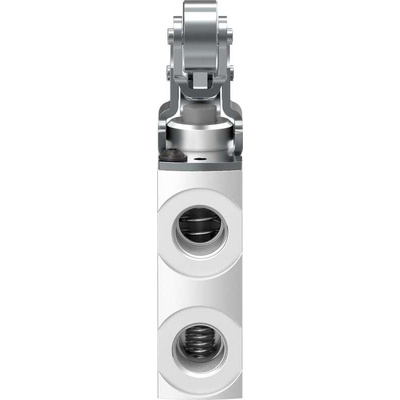

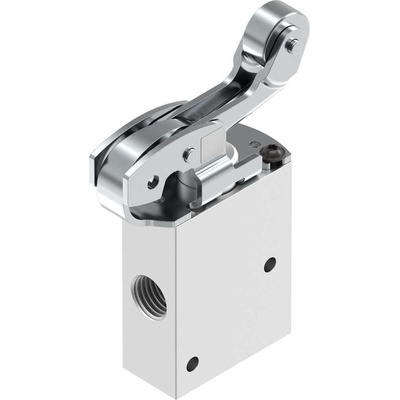

Festo Pneumatic Manual Control Valve, Aluminium Alloy Body, 870L/Min Maximum Flow Rate - VMEF-RT-M32-M-G14

Take power over your compressed air system into your own hands with this pneumatic manual control valve from Festo. It lets you control the flow of air mechanically, giving you the precision you need to ace your operations. It's easy to install via through-hole mounting and is also lightweight at just 204g, so helps to keep your system lean. A maximum flow rate of 870L/min makes it a good choice for high-volume pneumatic applications, while the 3/2 port configuration offers you flexibility in your setup options.

Features & Benefits

• Roller lever control mechanism for ease of use
• Can be operated in a vacuum, so is ideal for closed systems
• Operating temperature range between -10°C and +60°C to handle demanding environments
• Width of just 20mm can fit into compact systems
• Standard G1/4 connection port thread for wide compatibility

Applications

• Manufacturing lines
• Packaging plants
• Agricultural machinery

What pressure levels can this pneumatic manual control valve handle?

It has a wide operating pressure range between -0.95 bar and 10 bar, making it a versatile option.
