VMEF-KT-M32-M-G18, Festo Roller Lever 3/2 Pneumatic Manual Control Valve VMEF Series, G 1/8, 1/8in, 8049241, Клапан

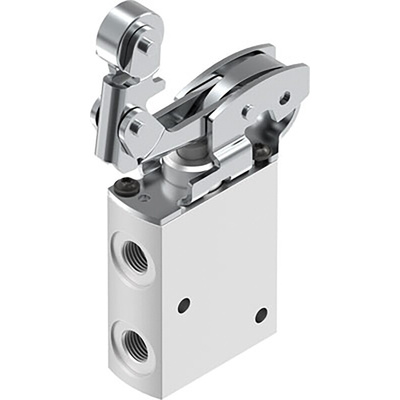

Festo Roller Lever 3/2 Pneumatic Manual Control Valve

The Festo roller lever 3/2 pneumatic manual control valve is a three-way two position roller lever spring control valve. It is ideal for controlling cylinders or pneumatic actuators by being triggered by something moving over the roller and pushing the lever down, once it is past the lever will spring return. It is simple to use, install and maintain. Due to manufacturer change, valves or 3/2 function now have aluminium with moulded polymer (Fortron PPS) body which reduces the net weight and gives an aesthetic richness to the valve body. It is suitable for multi-directional flow and dual supply applications with a high flow capacity. The Festo direction control valve is ultra-compact and durable.

Features and Benefits

• Small and compact for a wide range of pneumatic applications
• Functions with flow rates of up to 1200l/min, valves VHEF offer outstanding pneumatic performance
• Durable due to tried and tested piston spool and disc seat valves
• Easy to install as it can be mounted using mounting holes. Front-panel mounting possible for nearly all the valves (not possible for finger lever valve)
• Flexibility of the pneumatic working lines provides a practical solution to different requirements
• Robust construction
• Silent and smooth working
• Extended service life

Applications

• Clamping or closing safety doors

Certifications

• ISO8573-1:2010

Manual Control Valves

Datasheet VMEF-KT-M32-M-G18

VMEF Series Pneumatic Valve Datasheet
