VUVS-LK30-M32C-AD-G38-1B2-S, Festo 3/2 Pneumatic Solenoid Valve - Solenoid G 3/8 VUVS Series 24V dc, 8049880, Клапан

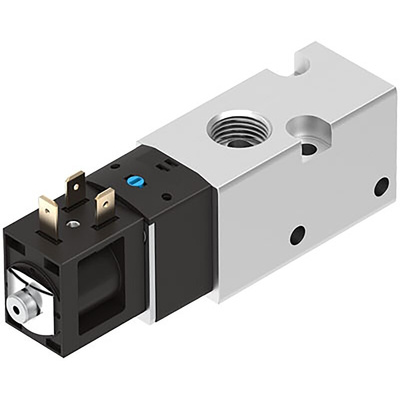

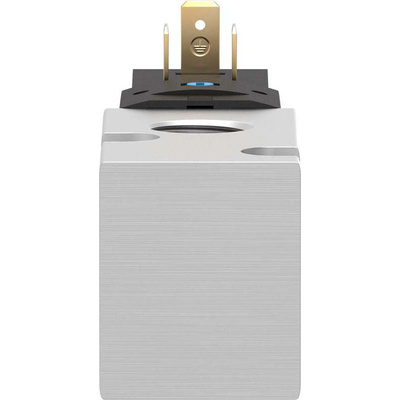

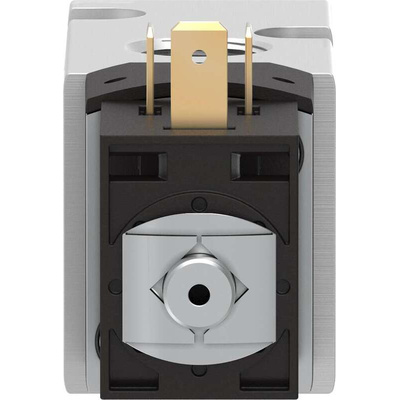

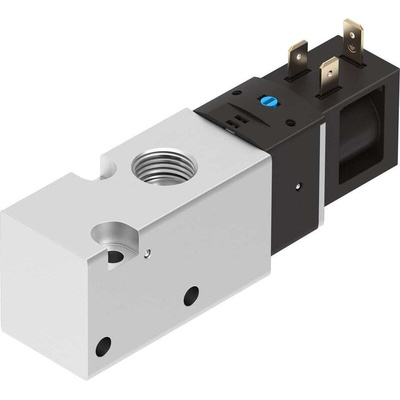

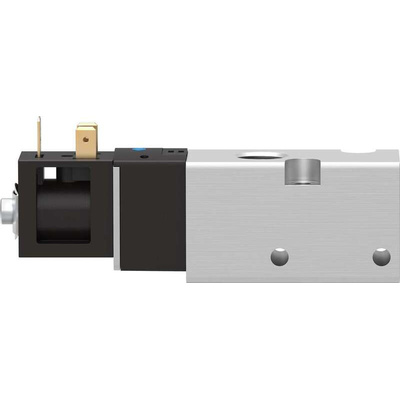

Festo Pneumatic Solenoid Valve, 16ms Switch-On Time, Non-Reversible Flow Direction - VUVS-LK30-M32C-AD-G38-1B2-S

Want to control the flow of compressed air in your pneumatic system? This solenoid valve from Festo does the job for you. It uses a small electrical current to send a signal to an internal spool, which opens and closes the valve. Measuring only 122 (L) x 39 (H) x 31mm (W), it's a compact piece of kit suitable for use where space is tight. While it may be small, it's also mighty, offering a maximum operating pressure of 8 bar and a flow rate of up to 1600L/min.

Features & Benefits

• Simple to mount on a manifold rail using the pre-drilled through hole
• Fast switching times of 16ms ON and 20ms OFF, for a swift response
• Operating temperature range between -5°C and +50°C to suit challenging conditions
• Standard G3/8 ports make connecting tubes and hoses easy
• At 250g, it adds minimal weight to your setup

Applications

• Food and beverage processing
• Automotive engineering
• Pneumatic tools

What's the power consumption of this valve?

This solenoid valve's power consumption is relatively low at 3.3W, ensuring energy-efficient operation.

What's the housing made of?

The body is made of wrought aluminium alloy, which is durable, lightweight and resistant to corrosion.
