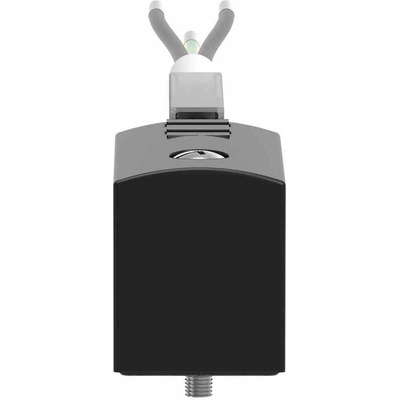

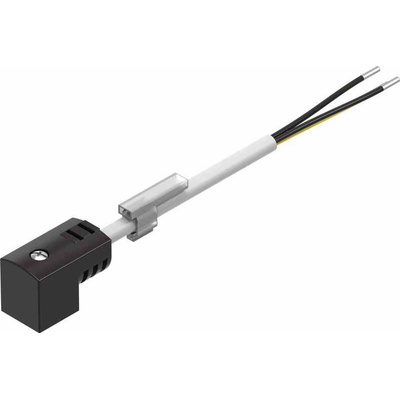

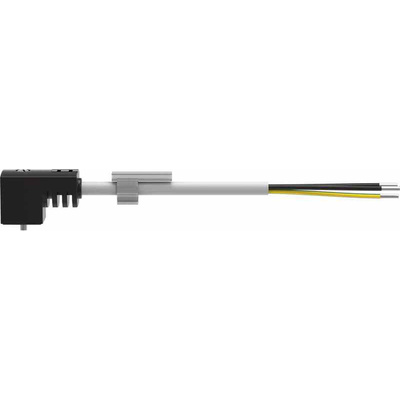

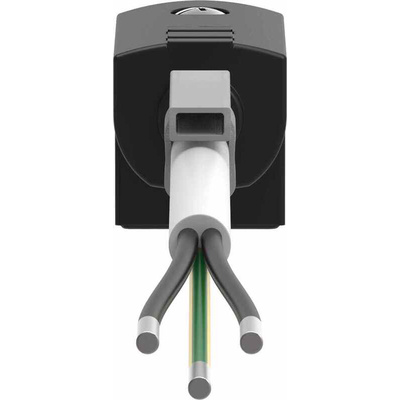

KMEB-1-24-10-LED, Festo KMEB Plug and Cable

Festo Pilot Valve Component - KMEB Series - KMEB-1-24-10-LED

This plug socket from Festo makes it easy to achieve secure cable connections in factory automation applications. The unit comes pre-assembled with a 10-metre cable, so installation is quick and efficient. It's designed for connecting valves with EB solenoid coils and uses a 3-pin type C connection to EN (European Norms) 175301-803 specifications. That means the plug is compatible with a variety of equipment. An LED indicator helps you quickly determine the component's on/off status, and the IP65 rating means it can withstand the dust, dirt and waterjets experienced in harsh industrial settings.

• For use with MEBH, MOEBH, N2 Solenoid and VUVB series valves
• Mountable on a solenoid valve with M2.5 central screw
• Product weight of 460 g
• Nominal operating voltage of 24 V
• Protective earth connection available
• Cable length of 10 m
• Cable diameter of 5.2 mm
• Cable structure of 3 mm² x 0.5 mm²
• Ambient temperature range of -20°C to +80°C

Range Information

• The KMEB series is Festo's sturdy and reliable range of pre-moulded plug sockets with cables for valve connections with EB solenoid coils
• Both PVC (polyvinyl chloride) and PU (polyurethane) cables are available for greater design flexibility
• Bronze contacts ensure strong electrical connections
• Units available in cable lengths of 2.5 m, 5 m and 10 m

Datasheet KMEB-1-24-10-LED

Brochure - KMEB-1-24-10-LED

Catalogue - KMEB-1-24-10-LED
