NEBV-Z4WA2L-R-E-5-N-LE2-S1, Festo NEBV Connector Lead

Festo Connecting Cable - NEBV Series - NEBV-Z4WA2L-R-E-5-N-LE2-S1

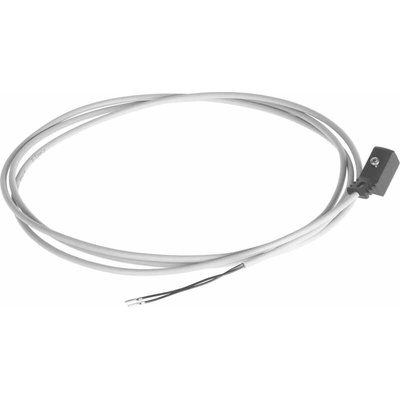

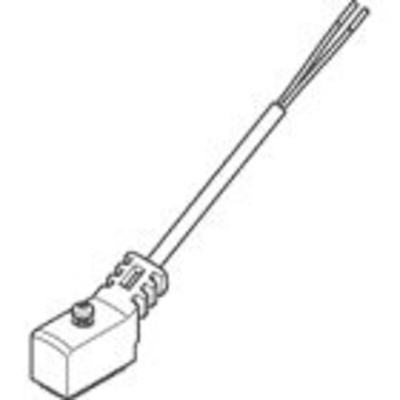

This flexible Festo connecting cable lets you link up your solenoid valves to power. The lead is 5 metres long and comes with a plug socket featuring an M2 screw at one end and a pair of pins at the other, for simple connection to your electricity source. The solenoid end has an IP65 rating to ensure protection against dust and water spray. Signal status is displayed by an LED and the connector takes a nominal 24 V. Using this cable reduces the risk of valve damage and holding current, which keeps the valve 'on'.

Features and Benefits

• For use with solenoid valves
• Operating voltage of 24 V
• Lightweight at 90 g
• Cable diameter of 2.9 mm
• Provided assembled
• 2 x 0.14 mm conductors
• Temperature range -10°C to +50°C
• Suitable for chain-link trunking
• Polypropylene (PP) insulation

Range Information

• The NEBV range of connectors allows simple connections to Festo solenoid valves
• The connectors protect the valves against incorrect polarity and other electrical problems
• Built-in cables allow for easy connection to control systems and offer water and dust protection at the connectors

Certifications

IP65 rated
