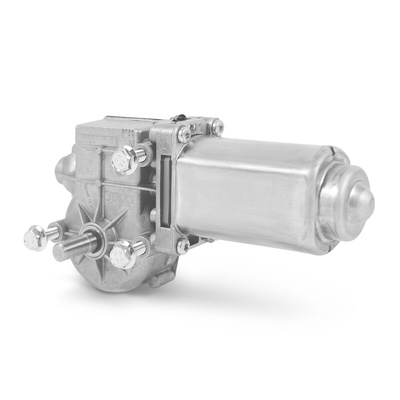

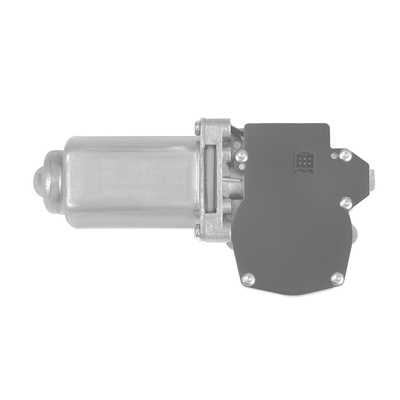

316.9751.3B.00, DOGA Geared DC Geared Motor, 24 V dc, 2 Nm, 38 rpm, 48mm Shaft Diameter, Двигатель

The DOGA 316H series comprises of a permanent magnet DC motor with worm gearbox developed for a compact, low noise and cost effective solution to suit many applications. Also integrated in to the motor are hall effect sensors offering up to 310ppr (1.16° accuracy) of the output shaft for feedback on speed, direction and position of the motor. Standard supply voltages are 12 or 24Vdc that can be supplied from a battery or power supply unit, with nominal output torque up to 2Nm and starting torque up to 10Nm the geared motor is suitable for applications that need high power at start-up. Output speeds range from 38rpm up to 65rpm to suit the application requirements, a DC motor controller can be used with this motor if variable output speed control is required. Protected against dust ingress and an EMC filter is available as standard on all articles for limiting electrical interference. The standard worm gear wheel is made from hardened plastic offering low noise and good performance.

Application
Agriculture
Building access
Care aid
Medical
Office equipment
Marine
General industrial automation

Datasheet 316.9751.3B.00
