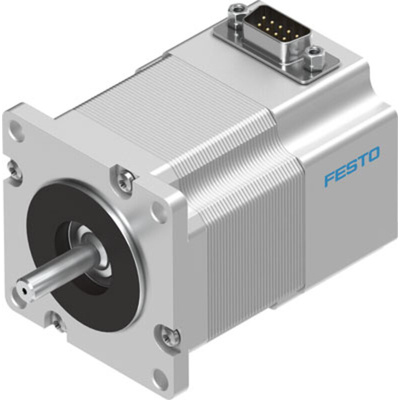

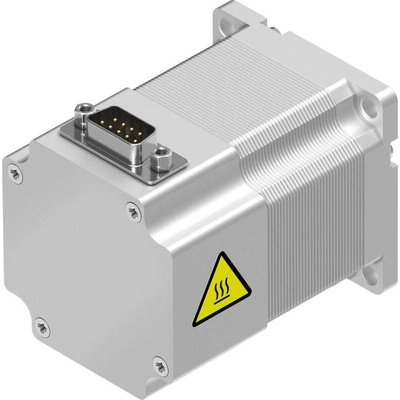

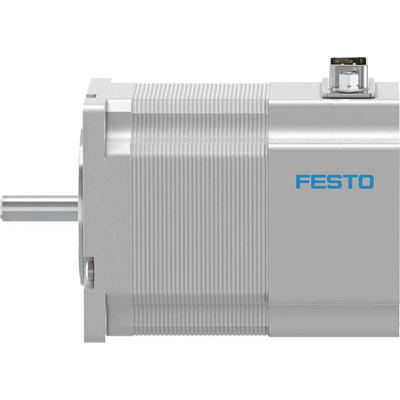

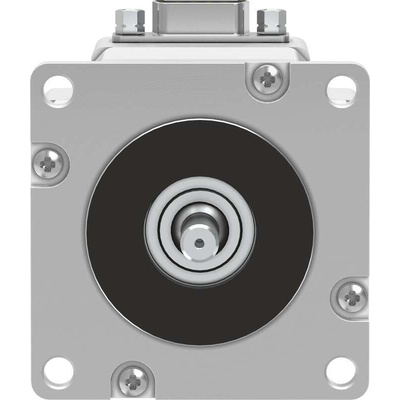

EMMS-ST-57-S-S-G2, Festo EMMS-ST Series Hybrid Stepper Motor, 0.8Nm Torque, 48 V, 1.8°, 6.35mm Shaft, Шаговый двигатель

Festo Stepper Motor, 0.4Nm Brake Holding Torque, IP54 Rating - EMMS-ST-57-S-S-G2

When you need your machinery to make minute movements, go for this stepper motor from Festo. Its hybrid technology means it can handle precise applications as it makes light work of managing half-stepping and micro-stepping motions. Thanks to the device's motor and braking torques (0.8Nm and 0.4Nm respectively), you get prompt starting and stopping of its rotating movement without any risk of overheating. An insulation class B rating means you can rest assured that heat won't spread unchecked through the component. This helps give it a long life as excess temperatures are a driving factor in motor deterioration.

Features & Benefits

• IP54 approval indicates it has limited dust protection and resists splashes of water from all directions
• Operating temperature range of -10°C to +50°C, so is a safe bet for harsh environments
• Tolerates a relative humidity of up to 85% for use in moist atmospheres
• Maximum output speed of 2720rpm makes it compatible with fast-paced applications

Applications

• Motion control positioning systems
• 3D printing
• Image scanners

Can this product drive heavy loads?

Yes, this stepper motor tolerates loads up to 10N on its axial shaft and up to 52N on its radial shaft, so you can rely on it to drive heavy industrial equipment.

Datasheet EMMS-ST-57-S-S-G2

1816682_Catalogue

1816682_Brochure
