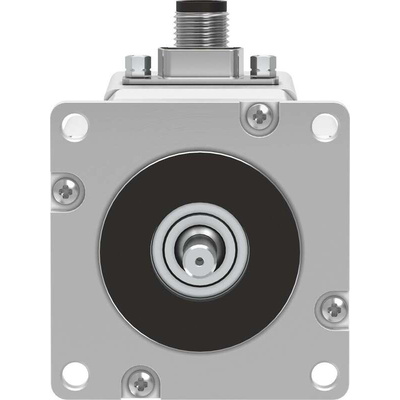

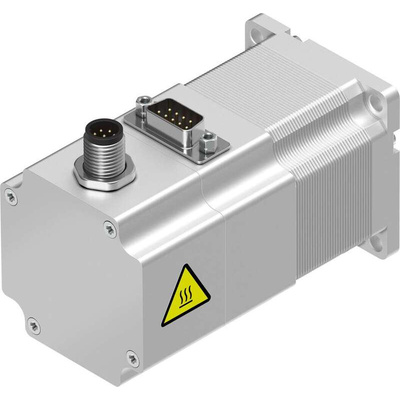

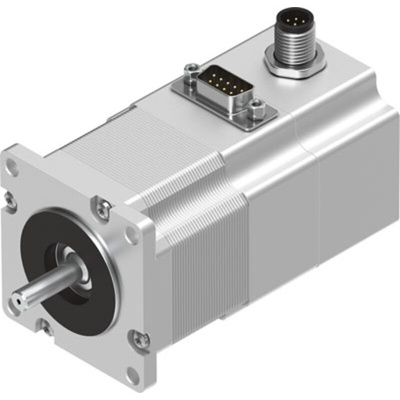

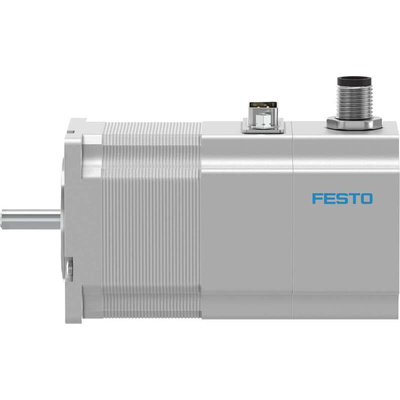

EMMS-ST-57-S-SE-G2, Festo EMMS-ST Series Hybrid Stepper Motor, 0.8Nm Torque, 48 V, 1.8°, 6.35mm Shaft, Шаговый двигатель

Festo Stepper Motor, 2720rpm Maximum Speed, IP54 Rating - EMMS-ST-57-S-SE-G2

Go for this stepper motor from Festo when you need a reliable way of making fine motor movements. As it uses hybrid technology, it's a practical pick for your half-stepping and micro-stepping motions and ideal for applications that call for the utmost precision. The unit's motor and brake torque ratings of 0.8Nm and 0.4Nm respectively, indicate it can start and stop its rotations promptly. It does this without producing excessive heat that could otherwise shorten a motor's life, so you can trust it won't damage any sensitive windings. Class-B insulation also helps prevent this by effectively stopping heat from spreading through the device.

Features & Benefits

• IP54 rating means it resists dust, as well as splashes of water from all directions
• 10N axial load tolerance and 52N radial load tolerance make it suitable for driving heavy industrial equipment
• Resists corrosion, so is a safe bet in environments exposed to moisture
• Integrated D-sub plug connection makes it easy to link to other equipment

Applications

• 3D printing
• CNC machines
• Robotics systems

Can I use this stepper motor for high-speed applications?

Yes. An impressive maximum speed of 2720rpm means this motor is a smart pick for fast-paced applications.
