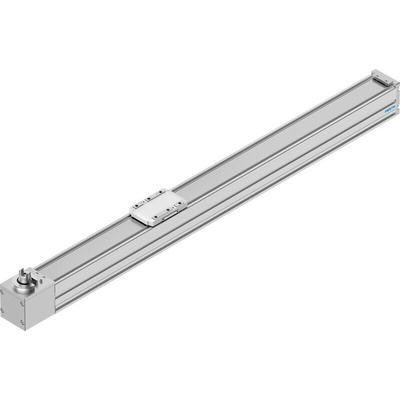

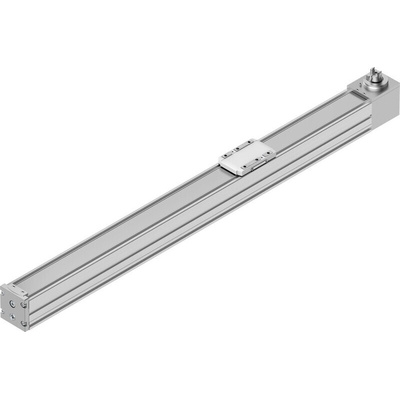

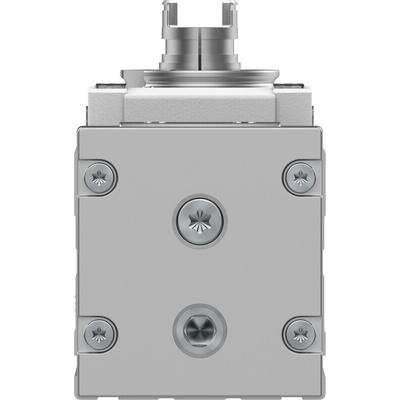

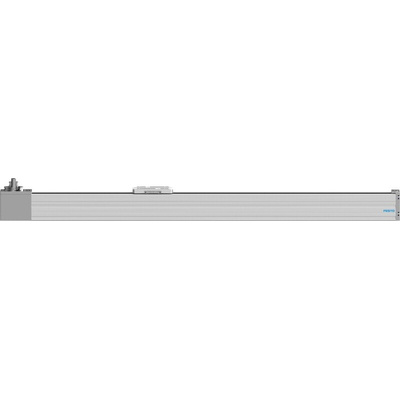

ELGC-TB-KF-45-500, Festo Electric Linear Actuator ELGC-TB Series, 500mm stroke

Festo Electric Linear Actuator

The Festo electric ELGC-TB series linear actuator is compact in design. It has toothed belt for dynamic application and breathing ports for removal of dirt particles through overpressure or vacuum. All 3 easily mount together to create 2-axis and 3-axis systems with recirculating ball bearing guide. It has servo motor for operation.

Features and Benefits

• Lightweight
• Easy to mount
• Cost efficient
• Stroke length is 500mm
• Maximum speed of the motor is 1.2m/s
• Internal guide and toothed belt
• Precision guide rail with high load capacity
• The toothed belt axes, spindle axes ELGC and mini slides EGSC form a scalable modular system for compact automation
• The common platform architecture provides an integrated range with matching interfaces
• A wide variety of systems can be achieved without using any adapter plates
• High-performance drive and guide elements ensure long service life, load carrying ability and reliability
• The uniform, universal range of accessories reduces warehousing and design work

Applications

• Factory and home automation
• Machine tools
• Industrial machinery
• Used in multi axis system

Certifications

• IP40 rated

Datasheet ELGC-TB-KF-45-500
