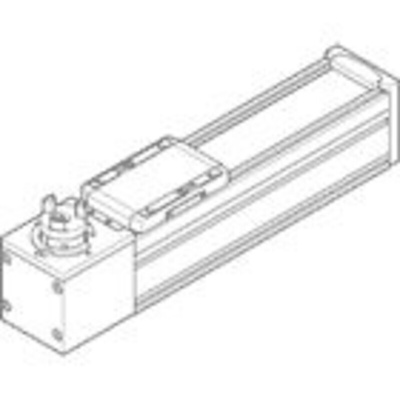

ELGC-TB-KF-60-800, Festo Electric Linear Actuator ELGC-TB Series, 800mm stroke

Festo Electric Linear Actuator

The Festo electric ELGC-TB series linear actuator is compact in design. It has toothed belt for dynamic application and ball screw for precision applications and breathing ports for removal of dirt particles through overpressure or vacuum. All 3 easily mount together to create 2-axis and 3-axis systems with recirculating ball bearing guide. It has servo motor for operation.

Features and Benefits

• Lightweight
• Easy to mount
• Cost efficient
• Stroke length is 800mm
• Maximum speed of the motor is 1.5m/s
• Internal guide and toothed belt
• Precision guide rail with high load capacity
• The toothed belt axes, spindle axes ELGC and mini slides EGSC form a scalable modular system for compact automation
• The common platform architecture provides an integrated range with matching interfaces
• A wide variety of systems can be achieved without using any adapter plates
• High-performance drive and guide elements ensure long service life, load carrying ability and reliability
• The uniform, universal range of accessories reduces warehousing and design work

Applications

• Factory and home automation
• Machine tools
• Industrial machinery
• Used in multi axis system

Certifications

• IP40 rated

Datasheet ELGC-TB-KF-60-800
