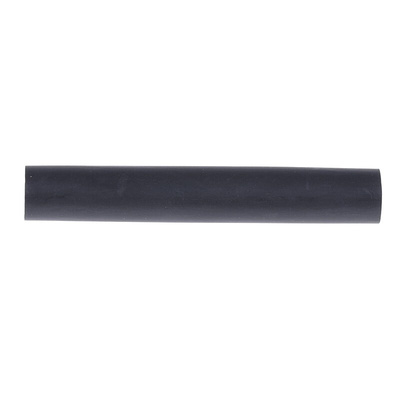

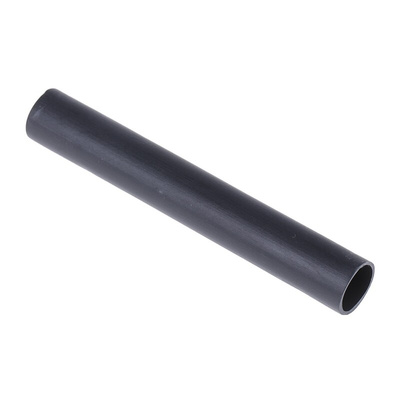

317-00034 TG40-6/1.27 50mm-PO-X-BK (10000), HellermannTyton Adhesive Lined Heat Shrink & Cold Shrink Sleeve, Black 6mm Sleeve Dia. x 50mm Length 4:1 Ratio, TG40

HellermannTyton Heat Shrink and Cold Shrink Sleeve

The HellermannTyton heat shrink and cold shrink sleeve is an adhesive lined, heat shrink tubing material supplied as a continuous tube that is printable on both the sides. This white colour sleeves belongs to the TG40 series. It contains polyolefin compound and has good tensile strength and resistance to organic solvents and chemicals. It has a 6mm sleeve, 1.27mm shrunk diameter and 50mm length. It has a shelf life of up to 5 years.

Features and Benefits

• Highly flexible
• No breakdown
• Operating temperature ranges between -55°C and 125°C
• Shrink ratio 4:1

Applications

• Automation technology
• Harness
• Marine application
• Protecting wire bundles

Certifications

• ASTM D 2671
• IEC243
• SAE-AMS-DTL 23053
• UL approved
• VG 95343-5

Datasheet 317-00034
