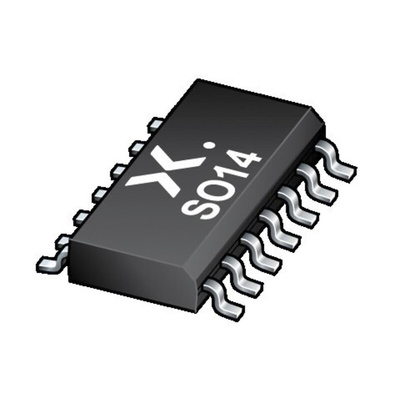

Nexperia 74LVC32AD,112, Quad 2-Input OR Logic Gates, 14-Pin SOIC, Логический вентиль

Part of a comprehensive portfolio of logic families and functions, our OR gates are ideal for control / glue logic, PCB miniaturization and routing simplification.

Mixed 5 V and 3.3 V applications
Reduce time to market for complex designs
Save board space
Open-drain output options
Improved signal integrity for complex layouts
Wide supply voltage range
Low propagation delay
Over voltage tolerant options
Low input threshold options
CMOS low power
Cell phone
Computing
STB
LCD TV
Industrial controllers

The 74LVC32A provides four 2-input OR gates Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V applications.

10 V tolerant inputs for interfacing with 5 V logic
Wide supply voltage range from 1.2 to 3.6 V
CMOS low power consumption
Direct interface with TTL levels
Specified from -40 °C to +85 °C and -40 °C to +125 °C

Datasheet 74LVC32AD,112
