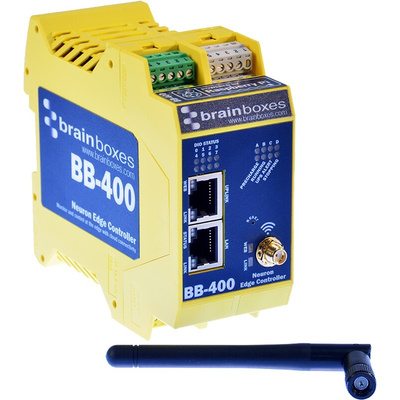

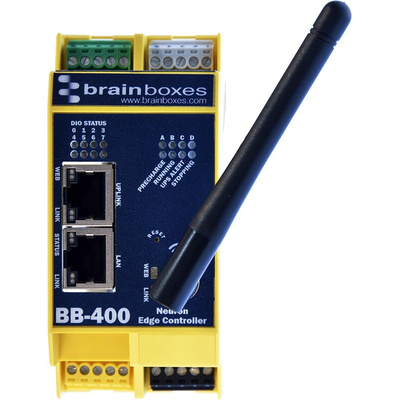

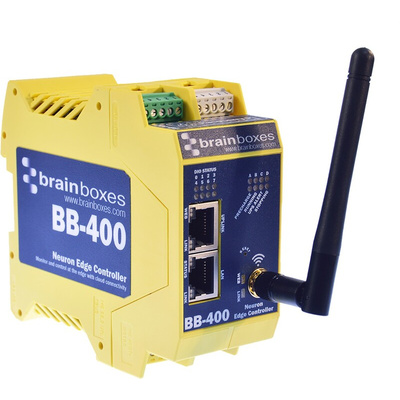

BB-400, Brainboxes Neuron Edge, Industrial Computer, 15W, 1.2 Ghz, 4GB (Flash) / 1GB (RAM), 4 Linux, Промышленный компьютер

Brainboxes Industrial Hubs and Switches

The Brainbox is 1 (Ethernet LAN), 1 (Ethernet Uplink) RJ45 port industrial hub. It has an electrical rating of 5 to 30VDC and has 8 digital IO lines. Multiple hardware interfaces allow for communication with many different types of equipment and machinery.

Features and Benefits

• Easy to use interface via the Industrial Edge Controller, powered by an industrialised Raspberry Pi and Arduino (Linux and Raspbian open software).

• Combines 8 Industrial I/O lines, Serial port and Network Connections within
compact DIN mount design.

• Comes with easy to use secure web interface.

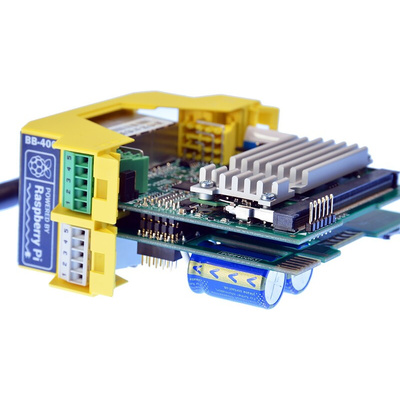

• Incorporates Raspberry Pi Compute Module CM3+ 32GB.

• Process data locally and send to the cloud. Use our built-in software or write your own with open source tools.

• Use Node-RED Graphical Programming Interface for rapid development.

• Develop on Pi and deploy seamlessly to Industry.

• -25°C to +80°C op temp range, 5-30VDC dual power input with built in mini UPS.

• Multiple ways to connect within compact DIN mount design.

• Detachable Wi-Fi antenna.

• UPS power management.

• Edge processing sends relevant data to your application or the cloud.

• Customise with APIs and docker containers.

Applications

• Industrial use
• Use out-of-the-box applications

FAQs -

http://www.brainboxes.com/faqs/ranges/16/search/

Datasheet BB-400
