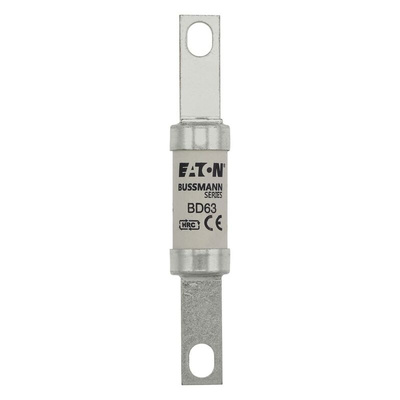

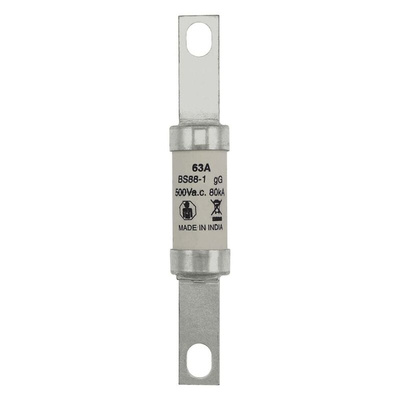

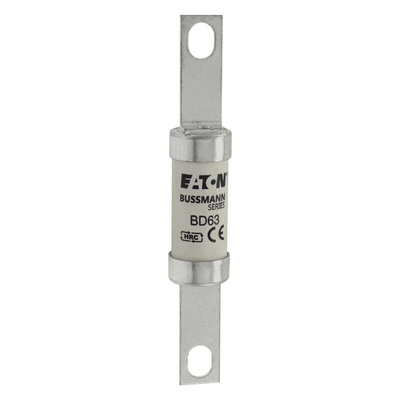

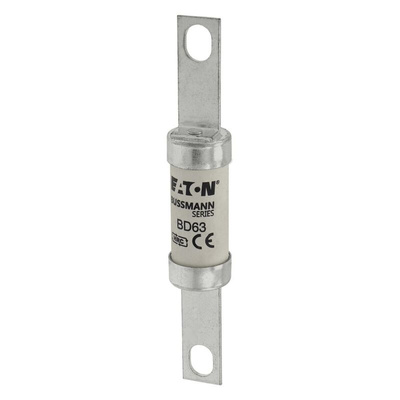

BD63, Eaton 63A Bolted Tag Fuse, 250 V dc, 500V ac, 111mm

Eaton Bolted Tag Fuse, 80kA Breaking Capacity, gL/gG Application Category - BD63

Stay ahead of electrical safety regs with this bolted tag fuse from Eaton. Thanks to a breaking capacity of 80kA, you can rely on it to interrupt substantial power faults, which protects components against damage and reduces the risk of electric shocks. The versatile type gG/gL device also safeguards against overcurrent, so you get comprehensive circuit protection. A high rupture capacity gives you the benefit of a lightning-fast reaction time. It's a cinch to install or remove the unit, as it simply bolts into a fuse carrier. A product like this is a practical choice for protecting electrical cables in process control and engineering applications.

Features & Benefits

• Made to exacting manufacturing standards for reliable quality and high performance
• Light weight of 66.9g for easy handling
• Maximises your board packing efficiency, thanks to its compact overall dimensions of 129 (L) x 21 (H) x 21mm (W)
• 63A current rating for the safe handling of high electrical loads

Is this a British Standard fuse?

Yes. The product meets BS88 overload and short-circuit protection standards. This means it's suitable for use in low-voltage industrial installations.

Note

Eaton formerly known as Bussmann

Datasheet BD63

Catalogue - Low Voltage Fuse Links and Fuse Holders
