197212 EASY-E4-UC-12RCX1, Eaton EasyE4 Series Logic Module, 12 V dc, 24 V dc Supply, Relay Output, 4 (Analogue), 8 (Digital)-Input, Analogue,, Логический модуль

Eaton Programmable Logic Modules (PLCs) - easyE4 Series

Implementing control has been made easy with the easyE4 series of logic modules and control relays from Eaton, valuable time is freed up with the convenient and faster new technology, for power management needs. The number of input/output can be extended easily with a unique Eaton plug connector, meaning expansion modules can be added to meet your needs. User-friendly easySoft software allows users to create and adapt diagrams, whilst easy navigation menus, simulation, and online communications make this series intuitive and simple.

Eaton's easyE4 PLCs offers a wide variety of function, control of tasks are performed by the base unit via integrated inputs/outputs whilst tailoring of the systems is available through the expansion modules. The PLCs also feature Ethernet and NET interfaces and allow a maximum of 8 devices to communicate with each other, additional devices can also be connected for more complex tasks. Another feature of the series is allowing the modules to run parallel to a maximum of 10 clusters, and with Modbus TCP protocol the Eaton XC300 can be used as a central master control system for all E4 devices.

Features and Benefits:

• IIoT architectures integration, enabling transfer to the cloud
• Flexibility with up to 11 local expansion modules per unit
• AC/DC/UC mixed connection (12/24 V DC, 24 V AC, 100-240 V AC)
• Unlimited combination of base units and expansion modules
• Ethernet connection
• 188 available input and output
• 4 programming languages
• DCF77 synchronization
• Various visualization options
• Multi-level password protection and individual user list
• 12 V DC to 24 V DC operational voltage available in this series
• Easy to use software
• Expansion and logic modules available

Application:

The easyE4 series from Eaton offers a large number of functions such as logic, timing relay, counter functions, time switch, PID, Arithmetic and operating and display functions. The intelligent features in a PLC make them integral to a wide range of applications in automotive, industrial, building, environmental, maritime and light and show technologies.

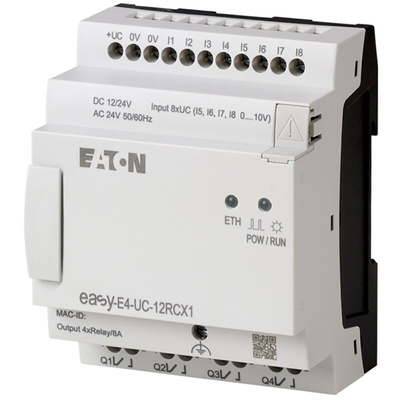

Eaton Ethernet-Enabled Logic Module, 12 Inputs, 4 Outputs - Easy Series - 197212 EASY-E4-UC-12RCX1

Set and monitor the operating parameters of sensors in your machinery using this logic module from Eaton. For versatility, it features 8 digital inputs on one side, of which 4 can switch to analogue. On the other side, there are 4 relay outputs. Thanks to its built-in Ethernet interface, you can easily connect this unit to the internet for dependable communication with other devices. Use this logic module to regulate your automated industrial equipment.

• LED indicators for quick monitoring of operating status
• Broad operating temperature range between -25°C and +55°C, as well as shock and vibration resistance, to withstand demanding settings
• Operating pressure range between 795 and 1080hPa for safe use in high-pressure environments
• Timing relay accuracy rating of ±0.02% for reliable performance

How do I mount this module?

To mount this module, simply clip it to a DIN rail or screw-fix it to a surface. For added versatility, you can mount it vertically or horizontally.

How fast does this module transmit data?

When connected to the internet, the module has a data transfer rate of 10/100Mbps for efficient transmission.

Suitable replacement for:
274102 EASY512-AB-RCX
274107 EASY512-DA-RCX
274110 EASY512-DC-RCX
274114 EASY719-AB-RCX
274118 EASY719-DA-RCX
274120 EASY719-DC-RCX
256270 EASY819-DC-RCX
256272 EASY820-DC-RCX

Note

Eaton formerly known as Moeller

Brochure - easyE4

EASY-E4-UC-12RCX1 Datasheet

Instruction Leaflet - easyE4

User Manual - easyE4

EATON easyE4 Series Cross Reference List
