197223 EASY-E4-DC-6AE1, Eaton EasyE4 Series Logic Module, 24 V dc Supply, Analogue Output, 4-Input, Analogue Input, Логический модуль

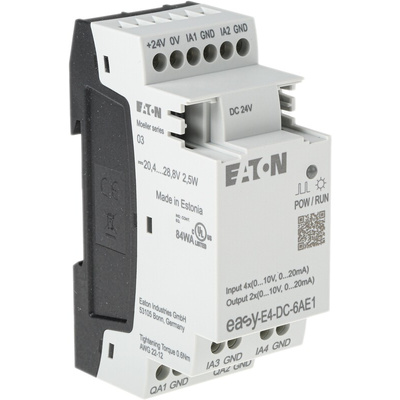

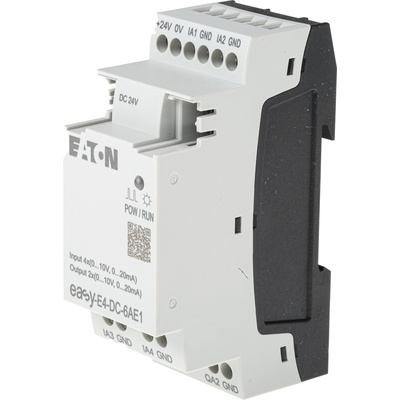

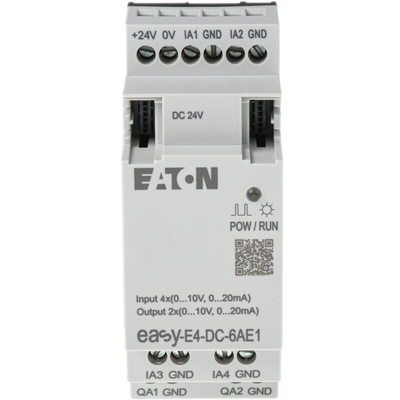

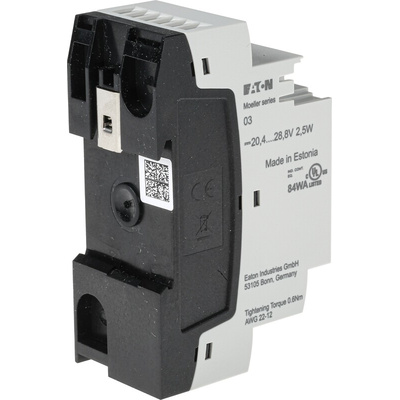

Eaton Logic Module, Ethernet Network Compatible, IP20 Rating - 197223 EASY-E4-DC-6AE1

When it's time to expand your industrial automation network, reach for this logic module from Eaton. It's an extension unit designed to supplement an easyE4 programmable control relay. By installing it, you can expand an existing network used for controlling and regulating I/O applications by adding capacity for 4 further analogue inputs and 2 digital outputs. The module's industry-standard 24V DC supply makes it easy to integrate with the kit you have already, so it slots seamlessly into your circuitry. Thanks to its screw terminals, getting a robust electrical connection with any wire between 0.2 and 4mm² is a piece of cake.

Features & Benefits

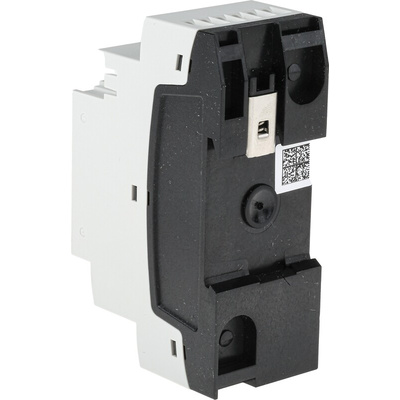

• Simply snaps onto a standard 35mm DIN rail for quick and easy mounting
• Works across a broad operating temperature range of -25°C to 55°C, so it's a safe bet in harsh settings
• IP20 rating indicates it's touch-proof, meaning it doesn't pose a shock risk if touched with your fingers

What programming languages can I use with this device?

The module supports Easy Programming EDP, Function Block Diagram, Ladder Diagram and Structured Text languages, so you have four commonly used programming options to choose from.

Suitable replacement for:
114295 EASY406-DC-ME
116567 EASY411-DC-ME

Note

Eaton formerly known as Moeller

Brochure - easyE4

EASY-E4-DC-6AE1 Datasheet

Instruction Leaflet

User Manual

EATON easyE4 Series Cross Reference List
