Contitech HTD 2000-5M-15 Timing Belt, 400 Teeth, 2000mm Length, 15mm Width, Зубчатый ремень

Contitech HTD Timing Belt

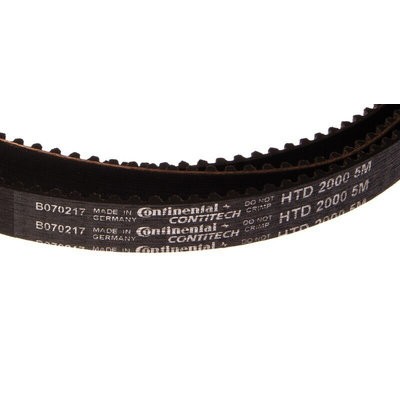

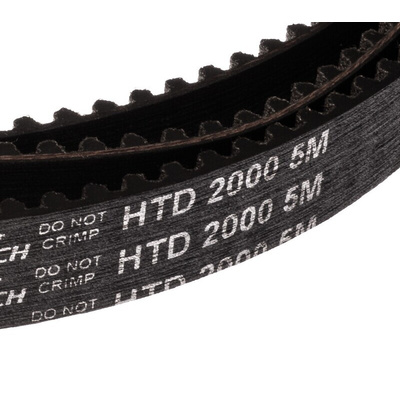

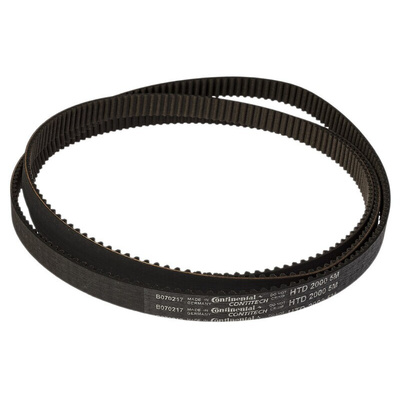

The Contitech HTP (High Torque Power) timing belt (synchronous) has a curved tooth profile, providing a positive drive by the meshing of belt teeth with the grooves of a relating timing belt pulley. The glass fibre tensile member provides high strength to transmit tensile forces and withstand shock loads with virtually no stretch. The abrasion resistant cover protects the teeth when in contact with the pulley and helps to reduce noise. The meshing of the teeth prevents belt slip and speeds variations, thus ensuring perfect synchronisation and positive drive. The timing belt has a pitch of 5mm while the belt length is 2000mm and the related width is 15mm. It has 400 teeth and the material used is rubber.

Features and Benefits

• Service temperature ranges between -20°C and 100°C depending on the application
• Conditionally resistant to oil
• Ozone resistant
• Suitable for tropical climates
• Resistant to aging
• Suitable for reverse flexing/reverse tensioning idlers
• Maintenance-free

Applications

• Typewriters
• Heavy industrial machinery
• Engine application

Datasheet HTD 2000-5M-15
