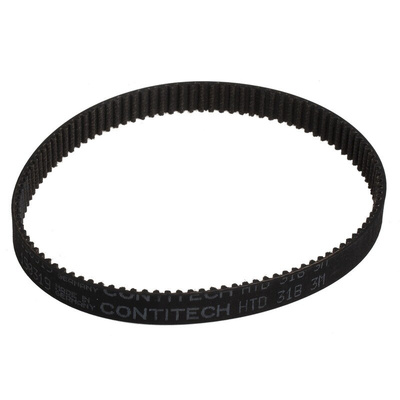

Contitech HTD 318-3M-09 Timing Belt, 106 Teeth, 318mm Length, 9mm Width, Зубчатый ремень

Contitech HTD Timing Belt

The Contitech HTP (High Torque Power) timing belt (synchronous) has a curved tooth profile, providing a positive drive by the meshing of belt teeth with the grooves of a relating timing belt pulley. The glass fibre tensile member provides high strength to transmit tensile forces and withstand shock loads with virtually no stretch. The abrasion resistant cover protects the teeth when in contact with the pulley and helps to reduce noise. The meshing of the teeth prevents belt slip and speed variations, thus ensuring perfect synchronisation and positive drive. The timing belt has a pitch of 3mm. The belt length is 318mm and the related width is 9mm. It has 106 teeth and the material used is rubber.

Features and Benefits

• Service temperature ranges between -20°C and 100°C depending on the application
• Conditionally resistant to oil
• Ozone resistant
• Suitable for tropical climates
• Resistant to aging
• Suitable for reverse flexing/reverse tensioning idlers
• Maintenance-free

Applications

• Typewriters
• Heavy industrial machinery
• Engine application

Certifications

• DIN EN61340-5-1
• REACH certification

Datasheet HTD 318-3M-09
