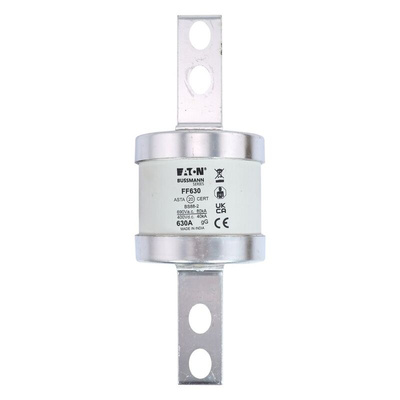

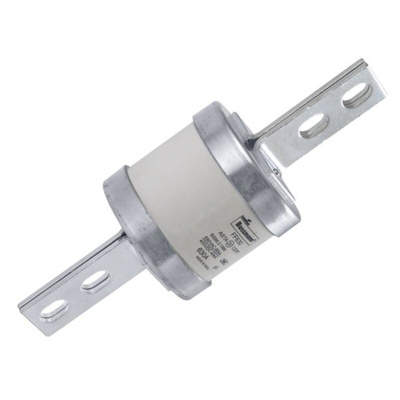

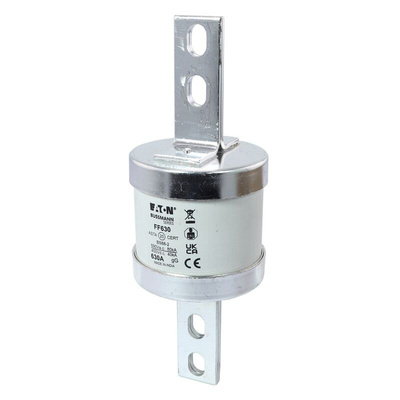

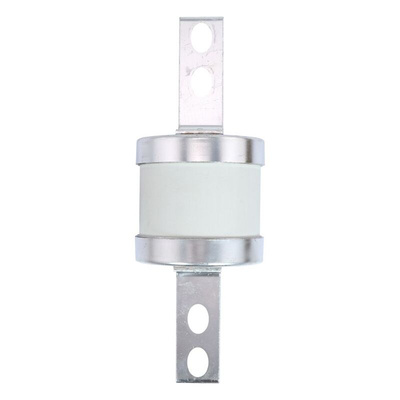

FF630, Eaton 630A Bolted Tag Fuse, C2, 400 V dc, 550V ac, 134mm

Eaton Bolted Tag Fuse, 630A Current Rating, C2 Size - FF630

Looking for a space-efficient cable protection solution for your industrial setup? Go for this bolted tag fuse from Eaton. It cuts power to your circuit when it senses a short circuit or overcurrent, taking the fall to prevent damage to your system. Thanks to compact dimensions of 74 (diameter) x 210mm (length), you'll have no issue installing this safety component in tight spots. It has offset tags with pre-drilled holes for easy attachment to a fuse holder, making installation quick and easy. A current rating of 630A shows you that it's built to handle heavy-duty applications like those you'd find in engineering works or power plants.

Features & Benefits

• Light weight of 1051g makes it easy to handle during installation and puts minimal strain on your setup
• Compatible with both AC and DC networks for versatility
• Breaking capacity of 80kA to handle substantial spikes without suffering damage

How much power does this fuse lose during operation?

This unit loses just 50W of power to heat during operation, making it an energy-efficient choice for your industrial settings.

Note

Eaton formerly known as Bussmann

Datasheet FF630

Catalogue - Low Voltage Fuse Links and Fuse Holders Catalogue
