FF500, Eaton 500A Bolted Tag Fuse, C2, 400 V dc, 550V ac, 134mm

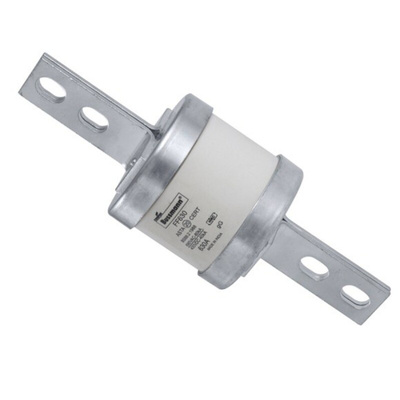

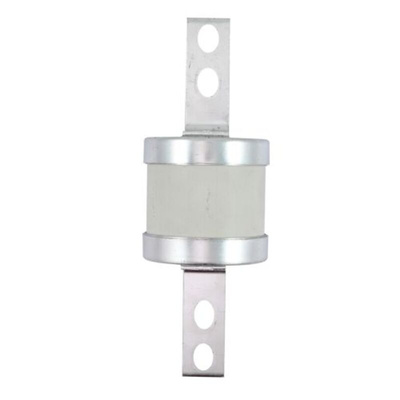

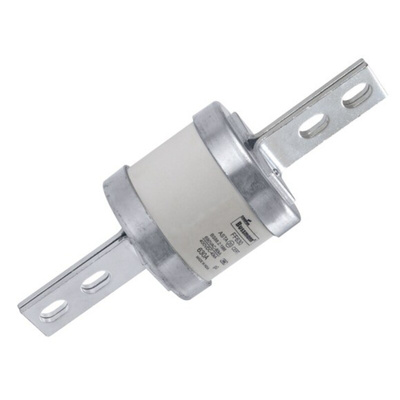

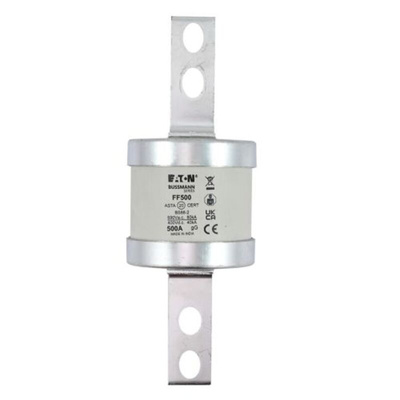

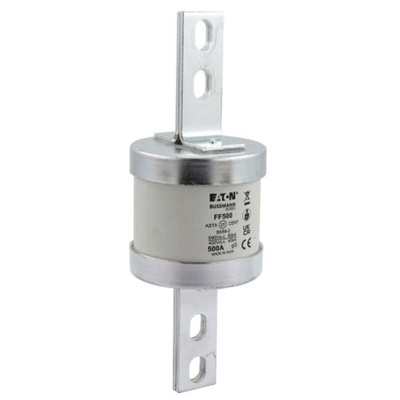

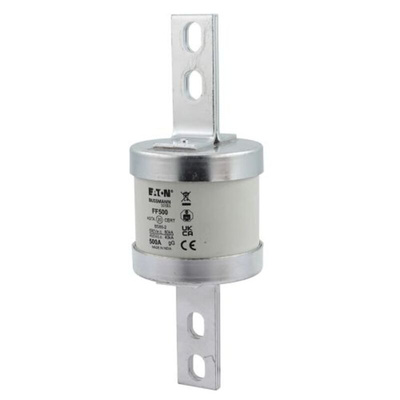

Eaton Bolted Tag Fuse, Centred Tag Orientation, FF Type - FF500

Shield your circuit against electric hazards with this bolted tag fuse from Eaton. In the event of a short circuit or current overload, it takes the brunt of the faulty current flow and sacrifices itself to prevent damage to connected devices. Mounting is simple as you just slot the lugs to a fuse holder in your panel. With a current rating of 500A, this unit can stand up to the demands of high-powered equipment such as lighting fixtures and medical devices.

Features & Benefits

• Pre-cut tabs in lugs for convenient bolting
• Compact fuse size of C2 for space-saving installation
• Fixing centres of 134mm and 185mm for versatility
• Regulation gG/gL utilisation category indicates suitability for general-purpose applications

What's the breaking capacity of this bolted tag fuse?

With a breaking capacity of up to 80kA, the component can safely withstand high levels of fault currents without arcing or being destroyed.

What size is this fuse?

The product has compact body dimensions of 74 (diameter) x 75.5mm (length) so you can easily fit it into a busy setup.

Note

Eaton formerly known as Bussmann

Datasheet FF500
