100FE, Eaton 100A Bolted Tag Fuse, FE, 690 V ac, 500V dc, 63.5mm

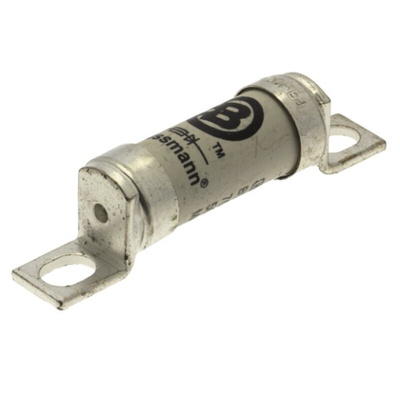

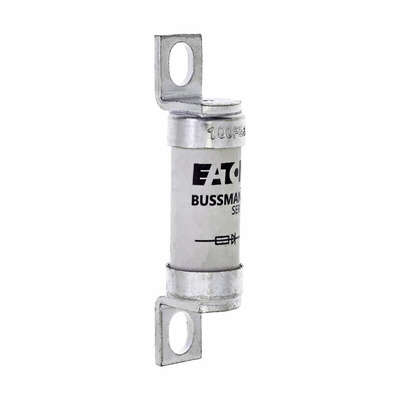

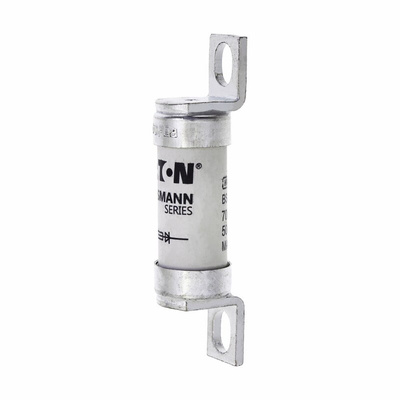

Eaton Bolted Tag Fuse, 100A, T Speed 100FE

Add this bolted tag fuse from Eaton to your electrical circuit to protect components such as power inverters and convertors. It's a Type T fuse with a thin element and 200kA breaking capacity, which means it blows quickly to stop the flow of electricity and prevent damage from short circuits.
The offset bolted tag design is compatible with many industrial distribution panels and fuse holders and provides a secure terminal connection.

Features & Benefits

• Compact size (77mm length) to minimise wattage loss and heat generation
• Voltage rating of 690V AC and 500V DC means it's suitable for a wide range of electrical circuits
• Lead-free construction for increased sustainability and safety

Can I use this fuse to protect a semiconductor?

Yes – it has an aR (accompanied semiconductor protection) class, which means it's suitable for applications such as rectifiers and reduced voltage starter motors.

What's the current rating of this fuse?

This fuse has a high current rating of 100A, so it's suitable for a wide range of industrial process control and automation applications.

Note

Eaton formerly known as Bussmann

Datasheet - Eaton 100FE
