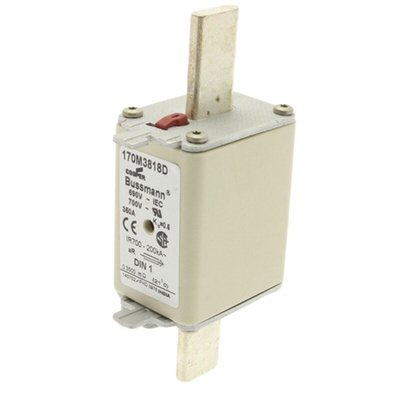

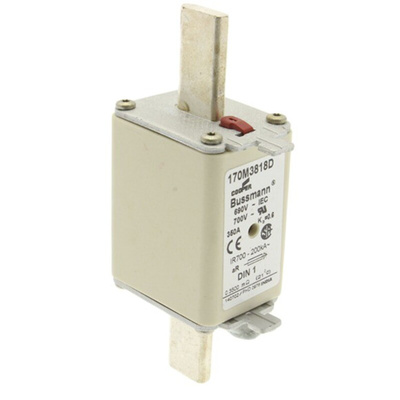

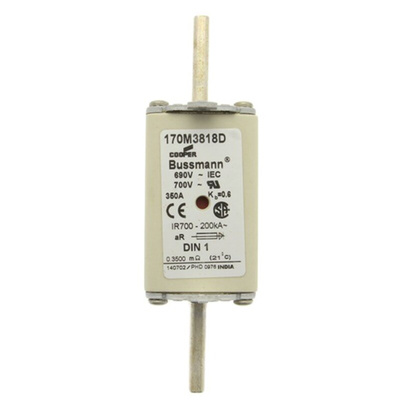

170M3818D, Eaton 350A Centred Tag Fuse, NH1, 690V

Eaton Centred Tag Fuse, 690V AC Voltage Rating, 200kA Breaking Capacity 170M3818D

Safeguard sensitive components in your electrical network with this centred tag fuse from Eaton. As an aR fuse, it's designed to provide backup short-circuit protection to semiconductors and rectifiers. A current rating of 350A makes it a practical choice for applications that consume a lot of electricity. It has knife blade tags at both ends that attach easily to open fuse bases, eliminating the need for installation tooling. You'll find fuses like this used for diode protection in industrial electricity distribution settings.

Features & Benefits

• Low power loss of 21.5W for energy efficiency and minimal heat dissipation
• Compact body dimensions of 64 (L) x 40 (W) x 68mm (H) for space-efficient installation in small enclosures
• Breaking capacity of 200kA to interrupt high current surges without being damaged
• Dual indicator system for quick monitoring

Is this fuse fire-safe?

Yes, this fuse is self-extinguishing and doesn't contain any halogens, which means it stops burning in a short time and doesn't emit any toxic chemicals in the event of a fire. This makes it safe for use in sensitive work areas.

Note

Eaton formerly known as Bussmann

Datasheet 170M3818D

Catalogue - IEC High Speed Fuse Links

Catalogue - Circuit Protection
