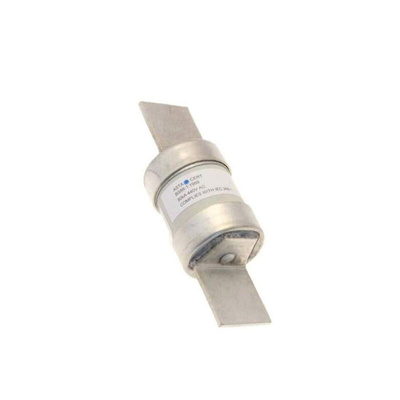

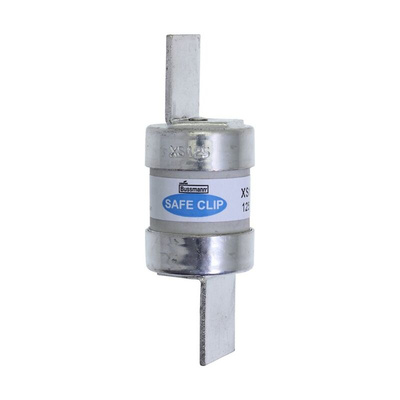

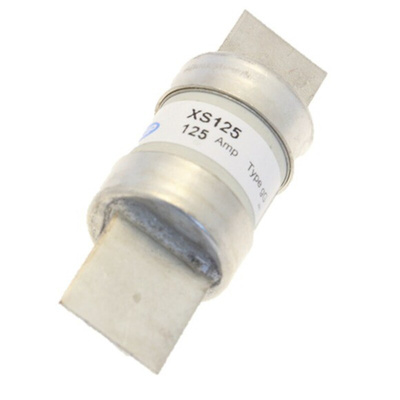

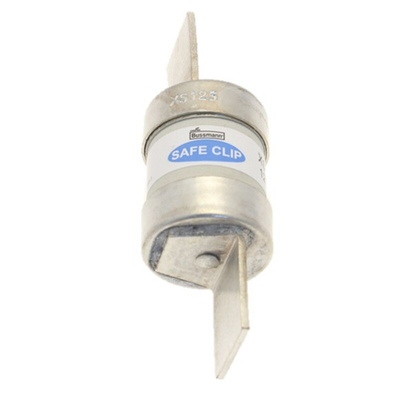

XS125, Eaton 125A Offset Tag Fuse, 440V ac

Eaton Offset Tag Fuse, Bladed Type, 80kA Breaking Capacity - XS125

Set the first line of defence against fault currents in your circuit with this offset tag fuse from Eaton. It contains an internal wire filament that rapidly heats up and melts when it receives an overcurrent. This breaks the circuit, quickly cutting off the power supply to protect the wider system from damage. With a current rating of 125A, this essential device is up to the challenge of protecting your high-powered equipment such as sensors and actuators in automated setups.

Features & Benefits

• Maximum voltage of 440V AC for safe use in heavy-duty systems
• Body has compact external dimensions of 39 (length) x 26.4mm (diameter) for space-saving mounting
• Reliable 80kA breaking capacity to withstand high fault currents

What's meant by the breaking capacity of a fuse?

The breaking capacity is the maximum level of current a fuse can interrupt without being completely destroyed. This fuse has an 80kA capacity.

How do I mount this offset tag fuse?

You can mount the unit by inserting the blades into the tabs of a fuse holder located in your control panel.

Note

Eaton formerly known as Bussmann

Datasheet - Eaton XS125
