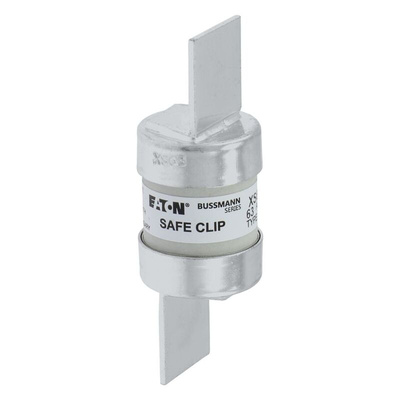

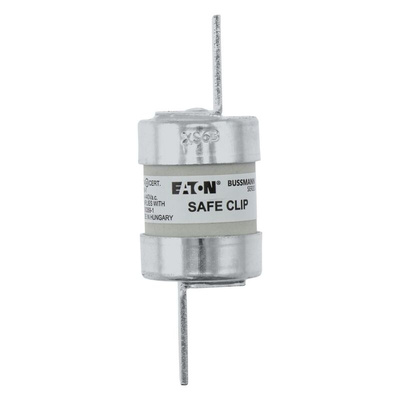

XS63, Eaton 63A Offset Tag Fuse, 440V ac

Eaton Offset Tag Fuse, Blade Construction, 67.7g Weight - XS63

Give your circuit a break from fault currents using this 440V offset tag fuse from Eaton. This British Standard fuse has a rated current of 63A for use in low-voltage electrical systems and is typically found in automotive applications. For a secure fit, the blade slips snugly into a fuse holder. The asymmetrical tag design, along with compact dimensions of 27 (W) x 80mm (L), makes it a good match to slot onto cramped panels where space is at a premium.

Features & Benefits

• Light weight of 67.7g for minimal strain on machinery
• Conforms to IEC 60269 fuse standards for safe operation in low-voltage conditions
• 80kA breaking capacity means it withstands fault currents with minimal risk of electrical damage

Can I reuse this fuse?

No, this is a sacrificial element with an internal filament that melts when it receives too much current. That means it can't be reset and you'll need to replace it after it blows.

What's a gG fuse?

A gG fuse is a general-purpose component that can handle high short-circuit faults but trips at lower overload currents than other types.

What fuse holder can I use with this fuse?

This fuse is compatible with Eaton's SC125 Safeclip fuse holder.

Note

Eaton formerly known as Bussmann

Datasheet - Eaton XS63

Catalogue - Low Voltage Fuse Links and Fuse Holders Catalogue
