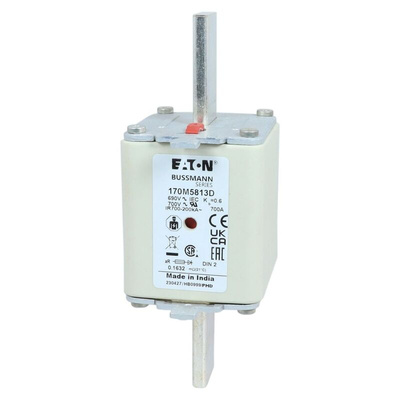

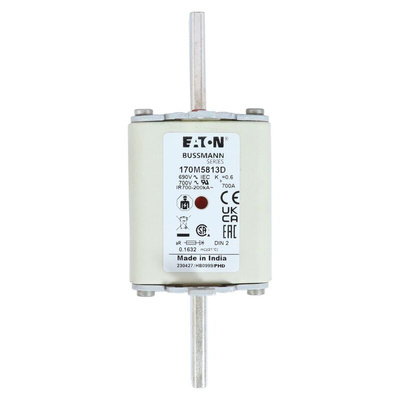

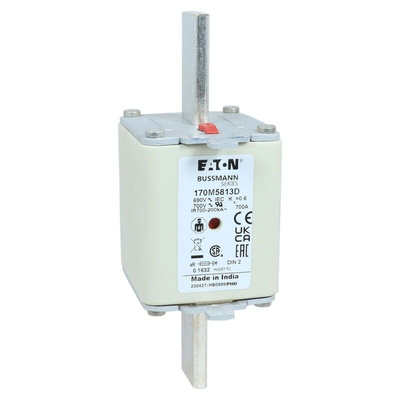

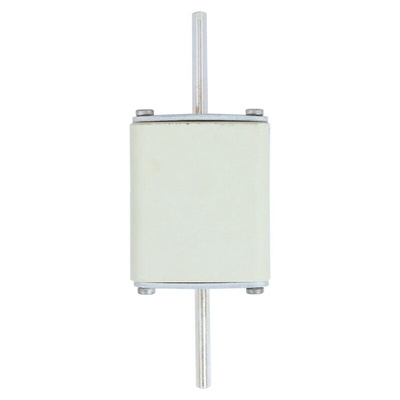

170M5813D, Eaton 700A Centred Tag Fuse, NH2, 690V

Eaton Centred Tag Fuse, 43W Power Loss, 200kA Breaking Capacity - 170M5813D

Stamp out electrical hazards in your industrial equipment with this centred tag fuse from Eaton. As an aR class component, it's designed to offer short-circuit protection to semiconductor networks. The unit works by cutting power to your device in the event of a fault, taking the fall and preventing damage to your setup. Thanks to knife blade tags in its centre, you can easily assemble it in an open fuse base. With a rated breaking capacity of 220kA, it handles high current surges effortlessly. You'll find fuses like this used in energy conversion equipment.

Features & Benefits

• Low power loss of 43W makes it an energy-efficient solution
• Combination status indicator for easy monitoring
• Current rating of 700A means it's the right fit for heavy-duty applications
• Light weight of 676g puts minimal pressure on your mounting surface

What tools do I need to install this centred tag fuse?

To mount this unit, all you need is a simple fuse replacement handle. Ensure that the fuse securely latches with the mounting base to prevent sparks.

Note

Eaton formerly known as Bussmann

Datasheet 170M5813D

Catalogue - Volume 4C: Circuit Protection
