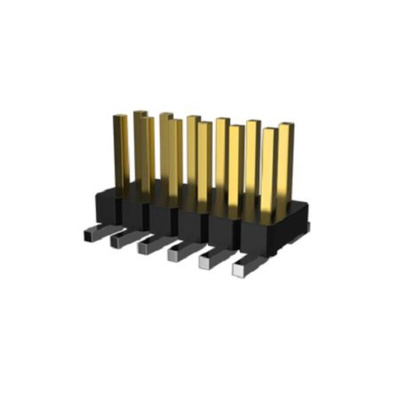

20021121-00004C4LF, Amphenol Communications Solutions Minitek127 Series Surface Mount Pin Header, 4 Contact(s), 1.27mm Pitch, 2 Row(s),

Minitek127® standard board-to-board connector is the improved 1.27 mm pitch modular system. It is the halogen-free product includes the straight, right-angle and surface mount, post option for surface mount, different plating variations and position numbers up to 100.

Positions from 4 to 100 with 2 positions incremental
The stack heights for parallel board to board are 5.8mm, 6.0mm, 6.1 mm and 6.9mm
Space saving compared to 2.54 mm & 2.00 mm pitch
Reliable and economical selective plating
15u”, 30u” GXT plating choice
Located post option for SMT type header and receptacle
Customized selective pin loaded
Halogen free

Minitek127®, Board to Board connector, Unshrouded vertical header, Surface Mount, Double Row, 4Positions, 1.27 mm (0.5inch) pitch.

Datasheet 20021121-00004C4LF
