76342-304LF, Amphenol Communications Solutions PCB Socket

Amphenol FCI 2.54 mm Dubox Series Low Profile PCB Sockets

2.54 mm Dubox series low profile PCB socket connectors that mate with BergStik unshrouded headers for board to board applications. These Dubox PCB sockets are fully shrouded for contact protection and are end to end and side to side stackable for PCB space saving. The receptacle contacts of these 2.54 mm Dubox PCB sockets have a dual beam design for high electrical performance and a cost effective duplex plating. The contacts are also pre-stressed enabling a low insertion force. The floating solder tails self-centre on the circuit pads to assure coplanarity. The housings of these Dubox PCB sockets are made from high temperature thermoplastic to withstand the solder reflow process. These 2.54 mm Dubox PCB sockets are available in a range of configurations
Part numbers 76341-XXXXX are single row, top entry
Part numbers 76342-XXXXX are dual row, top entry
Part numbers 71991-XXXXX are dual row, dual entry

Features and Benefits

• Low profile, space saving design
• End to end and side to side stackable
• Fully shrouded for contact protection
• Dual beam contacts for reliable electrical connection
• Cost effective Duplex plating
• Pre-stressed contacts for low insertion force
• Floating solder tails for coplanarity assurance
• High temperature housings to withstand the wave solder process

Product Application Information

These 2.54 mm Dubox connectors are ideal for use in applications in various different markets. These markets include industrial, instrumentation and medical, consumer, communications and data.

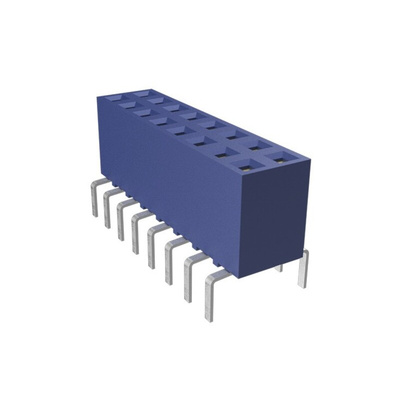

Dubox®, Board To Board Connector, Receptacle, Vertical, Through Hole, Top Entry, Double Row, 8 Positions, 2.54 mm (0.100in) Pitch

Amphenol FCI 2.54mm Dubox Series Interconnection System

Datasheet 76342-304LF
