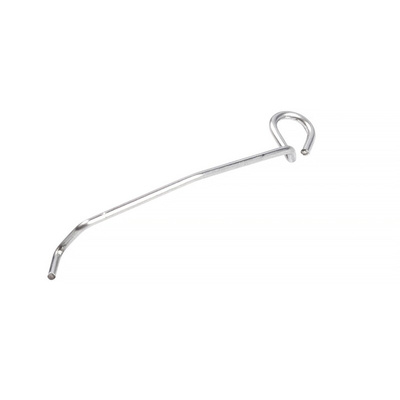

RS PRO Natural Steel Spring Clip

Steel Cable Spring Clips

Fire Rated Cable Clips, Steel Trunking Clip. Safety tested for compliance with BS7671 and BS5839 part 1. Comply with 18th Edition Wiring Regulations. For steel screws see stock no. 182-3865.

Features and Benefits:

• Non-corrosive finish
• Over 1200°C melting point
• Unique single fixing hole, use steel screw, stock no. 182-3865 to securely hold.
• Easy to install
• Comply with 18th Edition Wiring Regulations
• Can be fixed on surfaces at any angle to hold a variety of cable options

RS PRO Fire Rated Cable Clips

Spring Fire Rated Cable Clips effectively secure single cables (<7mm o/d), direct-to-surface or can be used inside trunking, as a trunking cable clip. High-temperature sprung steel is tensioned to provide a strong contact with trunking bases. In fire conditions, the steel cable spring clips (when secured with fire rated screws) can hold cables in-situ at 970°C for up to 2 hours. They satisfy all requirements of BS5839 Part 1. 50mm long arm is specially kinked to minimise risk of cable bruising or damage to the conductors of soft-skin cables.

Applications

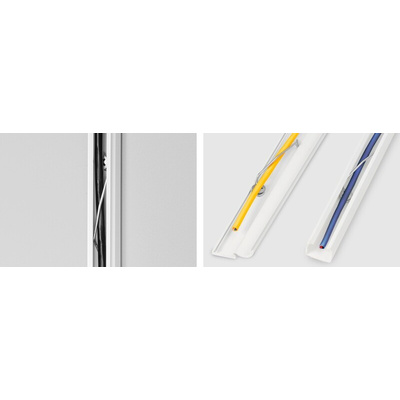

RS PRO steel spring cable clips are fire rated to secure cables in fire conditions, ideal for use direct to surface and can hold a variety of cable options, also used inside micro trunkings.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
