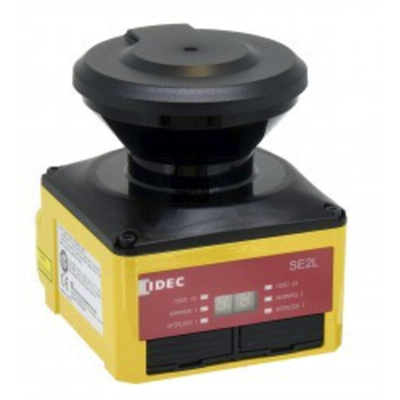

Idec SE2L Series SE2L-H05LP Laser Scanner

IDEC SE2L safety laser scanner is the smallest in the world but out performing many competitions. Features include 270 degree sensing angle, 5m safety protection zone, 20m warning zone, and customizable protection patterns.Configurable using Master and Slave configuration. Up to four SE2L can be connected together which is ideal for detection of four sides on AGVs.With dual protection mode, SE2L can be programmed to safeguard two different zones for two robots at once. Reduce the number of laser scanners and light curtains by half Protection zone1 half.

Protection zone (safety): 5m
Warning zone (non-safety): 20m
270 degree sensing angle
Master and slave function
Maximum 32 patterns
Customizable protection patterns
EDM functions
MicroSD slot

Datasheet SE2L-H05LP
