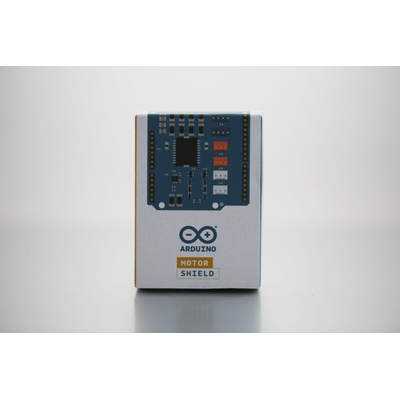

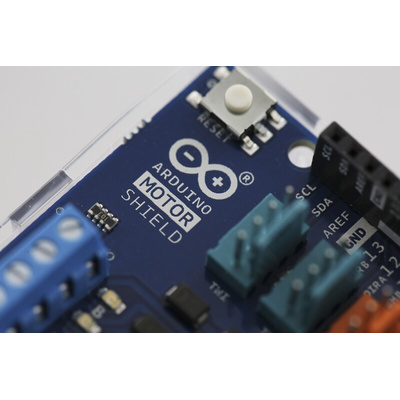

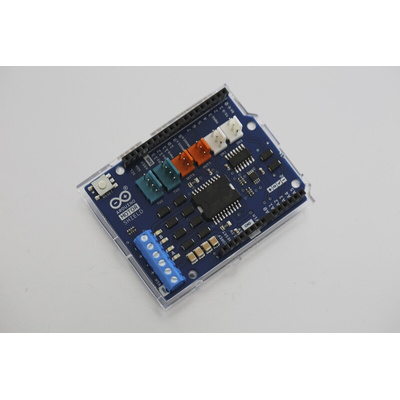

Arduino Motor Shield Rev3
The Arduino Motor Shield Rev3 is the latest product designed to drive inductive loads such as relays, solenoids, DC and stepping motors. It lets you drive 2 DC motors with your Arduino board, controlling the speed and direction of each one independently. You can also measure the current absorption of each motor, among other features. It is ready to interface shield, which means you can quickly create projects by directly plugging modules to the board.
Features and Benefits
The dual half-bridge driver
Screw terminal to connect the motors and their power supply
Operating voltage ranges between 5V and 12V
The maximum current of 2A on each channel
Can drive 2 motors or one stepper motor
2 connectors for analogue input and 2 for analogue output
Applications
Embedded development
Educational institutions
Robotics
Electronics laboratories
Automation
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
