1407671, Phoenix Contact Cable Gland, HC Series Thread Size M32 1 Way, For Use With Heavy Duty Power Connectors

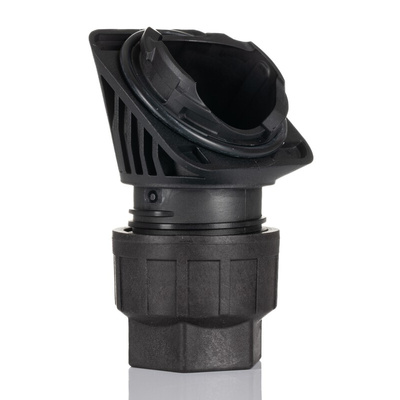

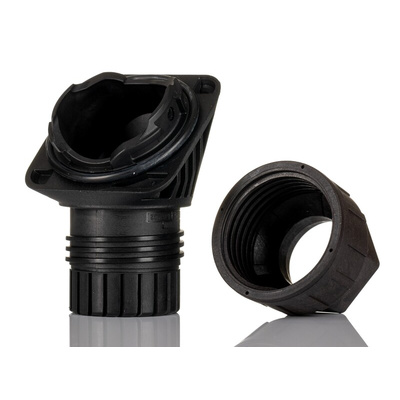

Phoenix Contact Cable Gland, M32 Size, NBR Seal - HC-B-G-M32-PLRBK - 1407671

Get your connections safely under cover with this cable gland from Phoenix Contact. It's made of durable polyamide that holds its own against wear and impact, giving you long-term performance. As this material also serves as an insulator, you can be sure you're in safe hands and there's no risk of electric shocks. The gland accommodates wire sizes between 11 and 21mm, making it a versatile shielding solution.
As this piece of kit has a bayonet locking mechanism, it keeps a firm grip on the cables it houses. This means it won't come apart easily, even in vibrating systems. Thanks to the screw termination method, you don't need complex tools to connect the gland – a simple screwdriver will do the job. NBR seals keep dust and contaminants that could mess with signal transmission firmly locked out. You'll find components like this one commonly used in the manufacturing industry.

• IP66 rating shows that it's dustproof and resists high-pressure water jets
• Wide operating temperature range between -40°C and +100°C for use in demanding conditions
• Meets UL 94-V0 standards, so stops burning in 10 seconds or less in the event of a fire

EVO plastic cable gland with bayonet locking, for housing series B, size M32, cable diameter: 11.. 21 mm

Datasheet 1407671

Line Drawing - 1407671
