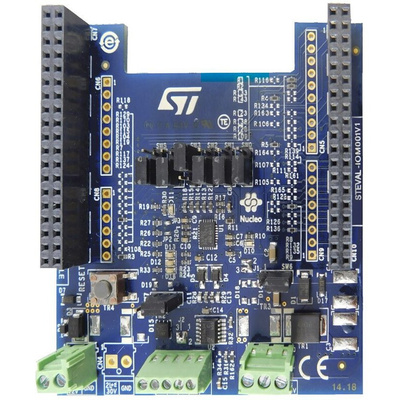

STMicroelectronics IO-Link Master Evaluation Board
The STMicroelectronics STEVAL-IOM001V1 IO-Link master evaluation board is based on the L6360 IO-Link master transceiver with physical layer compliant and IO-Link v1.1 specification. The board with the STSW-IOM001 example code provides a solution to develop IO-Link applications and to easily evaluate the communication features and robustness of the L6360.
Features and Benefits:
• Operating supply voltage range is between 18V and 32.5V
• 65mA selectable (3.3V or 5.0V) linear regulator
• Interrupt diagnostics pin
• I2C and UART interface
• SPI (slave) interface
• CQ (push-pull) and L+ (high side) switches
• IQ additional IEC61131-2 type 1 digital input
• L+ and CQ overload and overheating protections with non-dissipative cut-off function
• QFN-26L (3.5x5x1mm) package
• Additional high side switch for L+ heavy loads (IPS161H)
• LEDs for status and diagnostics
• Ground and VCC wire break protections
Certifications:
• CE certified
• EMC compliance with IEC61000-4-2, IEC61000-4-3, IEC61000-4-5
Datasheet STEVAL-IOM001V1| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
