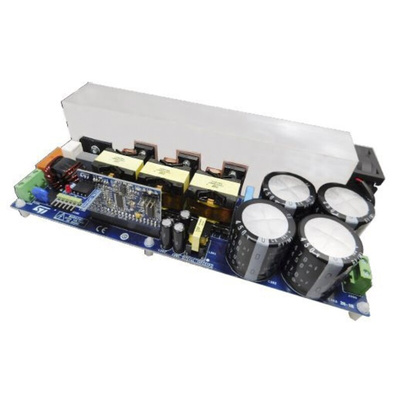

STEVAL-IPFC01V1, STMicroelectronics 3 kW Three-Channel Interleaved PFC Based on the STNRGPF01 Digital Controller PFC Controller for

The 3 kW interleaved PFC evaluation kit features:
power board
control board
adapter board
Input voltage range: 90 to 265 VAC
Line frequency range: 47 to 63 Hz
Maximum output power: 3 kW at 230 V
Output voltage: 400 V
Power factor: > 0.98 at 20% load
Total Harmonic Distortion: <5% at 20% load
Mixed-signal average current mode control, CCM fixed frequency operation
Switching Frequency: 111 kHz
Cycle-by-cycle regulation (analog current control loop)
Input voltage and load feed-forwards
Phase shedding
Burst-mode operation
Overvoltage protection
Thermal protection
Status indicator LEDs
Inrush current limiter function
Cooling function

Datasheet STEVAL-IPFC01V1
