RS PRO Bevel Gear, 4mm Bore, 10 Teeth, 1.0 Module

1828010
Производитель: RS PRO
Цена за шт. (норма упаковки 3 шт)
483.00 руб. (С НДС) *
Количество 3+ 15+ 30+
Цена 483.00 руб. 474.00 руб. 465.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

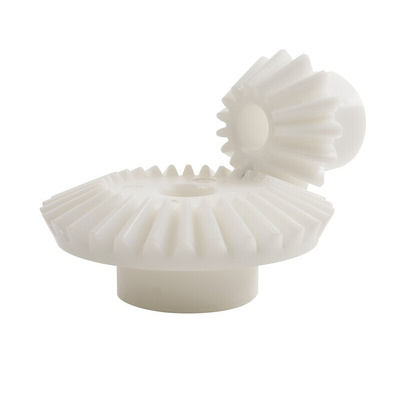

RS PRO Hostaform Bevel Gear

The RS PRO 4:1 metric moulded bevel gear is made from white HOSTAFORM®C. It has a pitch module of 1 and 10 teeth.
Other Information:
What are bevel gears?
Bevel Gear is a cone-shaped gear, which transmits power between two intersecting axels.
Why choose HOSTAFORM® gears?
HOSTAFORM® is a semi-crystalline, thermoplastic polymer. It is a versatile engineering plastic with good wear resistance, hardness, rigidity, excellent dimensional stability, long-term creep resistance and outstanding resistance to moisture, alkaline solutions, fuels and many chemicals.

Features and Benefits

• Standard tolerances, unless otherwise stated 0.25mm
• Shaft axis to intersect within 0.025mm
• Angular accuracy between shafts 5mins
• Mounting distance tolerance 0.05mm
• Bore tolerance H8
• Cut to the Gleason System
• 20 pressure angle
• Supplied in pairs

Certifications

• EN certified
• DIN 3964
• DIN 3967
• DIN 3971

Техническая спецификация
pdfRS Pro Datasheet
Модуль:
1.0
Номинальное передаточное число:
4
Отверстие:
4мм
Тип редуктора:
Bevel
Угол давления:
20°
Число зубцов:
10
Шаг:
1мм
