RS PRO Bevel Gear, 5mm Bore, 10 Teeth, 1.5 Module

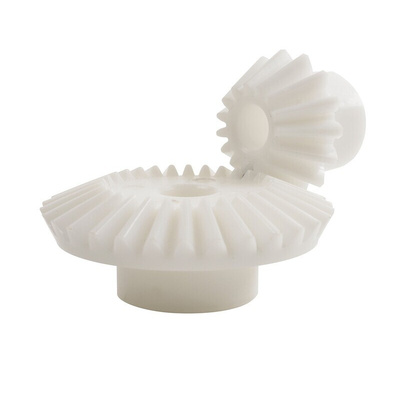

RS PRO Hostaform Bevel Gear

The RS PRO 4:1 metric moulded bevel gear is made from white HOSTAFORM®C. It has a pitch module of 1.5 and 10 teeth.
Other Information:
What are bevel gears?
Bevel Gear is a cone-shaped gear, which transmits power between two intersecting axels.
Why choose HOSTAFORM® gears?
HOSTAFORM® is a semi-crystalline, thermoplastic polymer. It is a versatile engineering plastic with good wear resistance, hardness, rigidity, excellent dimensional stability, long-term creep resistance and outstanding resistance to moisture, alkaline solutions, fuels and many chemicals.

Features and Benefits

• Standard tolerances, unless otherwise stated 0.25mm
• Shaft axis to intersect within 0.025mm
• Angular accuracy between shafts 5mins
• Mounting distance tolerance 0.05mm
• Bore tolerance H8
• Single wheel
• Cut to the Gleason System
• 20 pressure angle
• Supplied in pairs

Certifications

• EN certified
• DIN 3964
• DIN 3967
• DIN 3971
