RS PRO Grey Plastic Push Button Enclosure - 4 Hole 22mm Diameter, Корпус

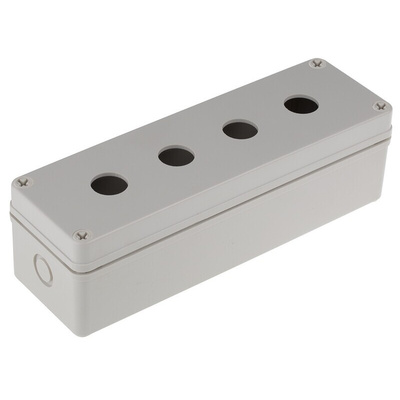

RS PRO Push Button Enclosure 4 Hole

This durable push button enclosure from our trusted and reliable own brand RS PRO is an essential cover for push buttons, ideal for use in an industrial environment. This reliable enclosure features four 22.5 mm holes for push button switches to be securely located and protected. The enclosure is made with a highly durable ABS plastic, ensuring protection from chemical corrosion, grease, oil and more.

Features and benefits

• Made with durable ABS plastic
• IP66 protection

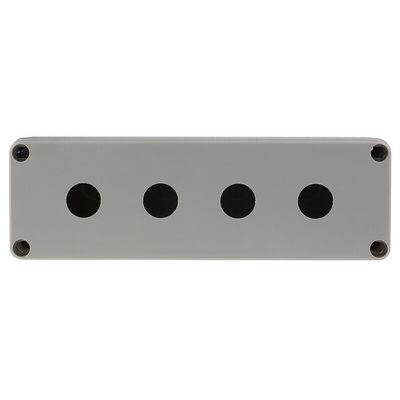

• Four 22.5 mm cutout diameter for push button

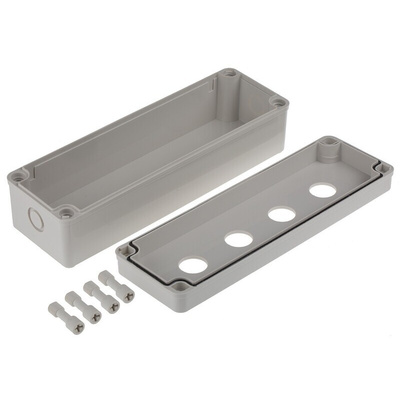

• Supplied with 4 plastic screws
• Wide operating temperature range
• Neutral grey colour

Common applications

RS PRO push button enclosures are ideal for use in industrial environments that require a durable enclosure for a range of push button switches, for example to operate machinery. They are perfect for use in working environments such as:
• Warehouses
• Factories
• Workshops
• Garages

Benefits of ABS?

ABS or Acrylonitrile Butadiene Styrene is a type of thermoplastic polymer that is highly durable and features high resistance to chemical corrosion in its solid state. ABS plastic also features a high impact resistance that can absorb shock effectively and reliably, ensuring long-lasting protection in tough conditions. Furthermore ABS plastic offers low electricity and heat conductivity making it an ideal protective cover for electrical components.

What is an IP rating?

IP (Ingress Protection) levels refer to the level of protection materials such as an electrical enclosure has against solids such as dust and debris and liquids. The first digit identifies the level of protection from a physical intrusion. The second digit identifies the level of protection from water and other liquids. A lower IP rating (such as IP62 offers protection from dust and splashback of water from a distance whereas a high IP rating such as IP78 can offer complete dustproof protection plus a continuous level of protection underwater.

What are push button enclosures used for?

Push button enclosures provide excellent protection for electrical push buttons and are available in a range of metallic and non-metallic materials such as plastic, stainless steel, aluminium, polypropylene and more.

Are there other sizes available?

RS PRO pushbutton enclosures are available in a range of sizes, with a varying number of holes to suit a range of applications such as:
• RS PRO 1 hole pushbutton enclosure - 1828655
• RS PRO 2 hole pushbutton enclosure - 1828656
• RS PRO 3 hole pushbutton enclosure - 1828657
• RS PRO 4 hole pushbutton enclosure - 1828658

RS PRO Datasheet
