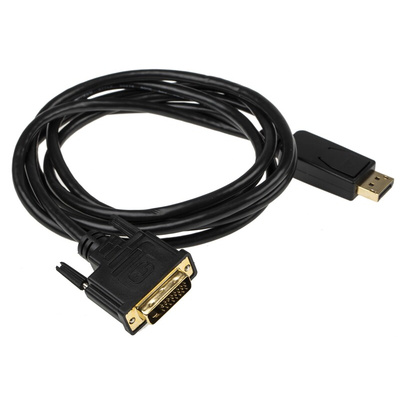

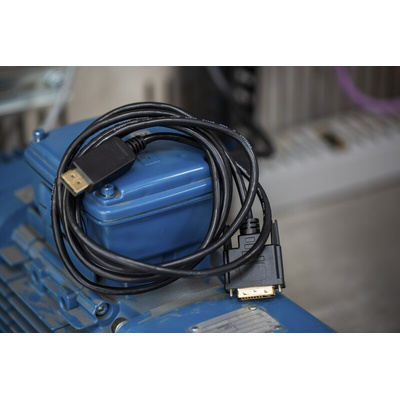

RS PRO 1080p DisplayPort to DVI-D Cable, Male to Male - 2m, Кабель

2mtr Display Port M - DVI-D M Cable - Black

DisplayPort cable is a 20-pin connector similar to HDMI but designed to replace DVI/VGA. The standard was put forward by VESA to define a new royalty free audio/video connection. This male DisplayPort to male DVI-D (Digital) cable with latching comes from our own trusted and reliable brand RS PRO is perfect solution for adapting your DisplayPort computer or graphics card to use a DVI monitor/device. A DisplayPort to DVI-D cable is a cost-effective approach to using your DVI-D display instead of upgrading to a DisplayPort monitor.

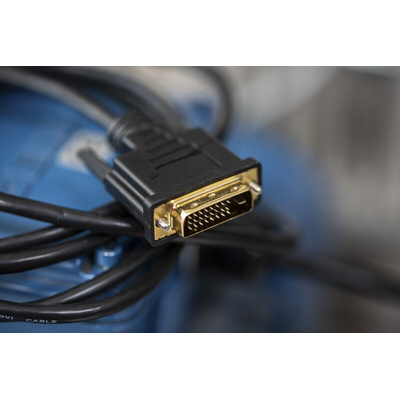

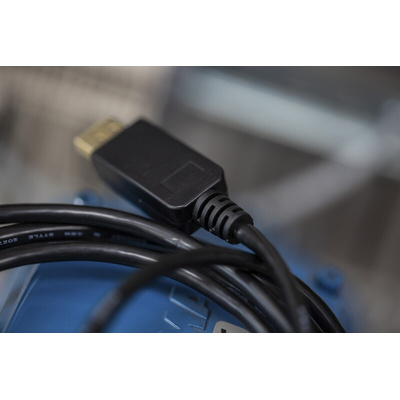

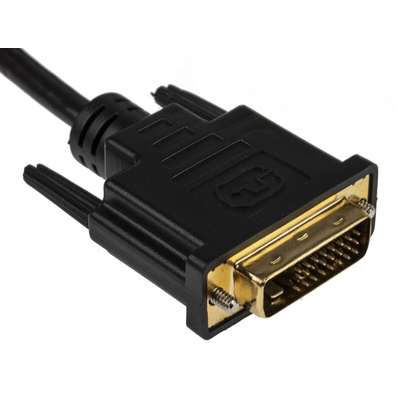

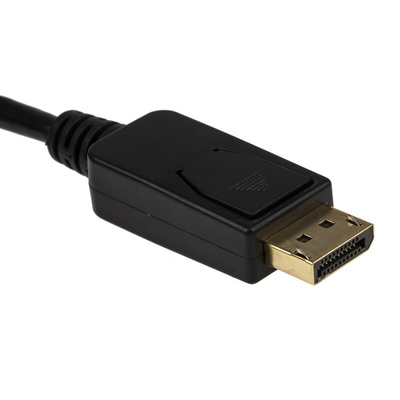

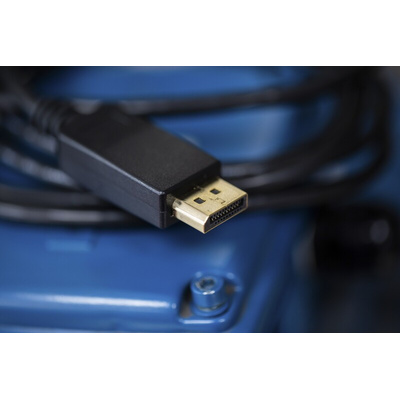

The connector hoods are made from black PVC and come with dust caps to protect the connectors. On top of the connector is the latch release and a strain relief on the end of the hood to support the cable.

Features and Benefits

• Support conversion from DisplayPort signal to DVI
• DVI-D output
• Support display port connector 20 pin
• Passive adapter
• Support 8-bit &10-bit deep colour
• Support the video bandwidth up to 10.8Gpbs
• Support the 1Mbps’ bidirectional auxiliary channel
• No software or additional drivers required
• Latching DisplayPort connector port

Applications

Whether you want to extend visuals from a laptop/computer to a projector or to a DVI display source, there are multiple uses for a DisplayPort to DVI-D cable.

• Connect a DisplayPort equipped device directly to any DVI-D display such as Digital Monitors, ideal for connecting PC or laptops to an DVI Display.
• This DisplayPort to DVI-D cable can be used to add another video display for desktop workstations or extend out an existing setup, ideal for home offices and office workplace.

FAQs

Does DisplayPort support Audio?

Yes, DisplayPort supports multi-channel audio requirements and supports a wide range of high-definition audio formats.

Why RS PRO?

RS PRO strives to give you reliable parts at competitive prices. With in-house experts testing all of our RS PRO branded products, we're confident we'll satisfy your demand for quality and dependability.

RS PRO has an extensive range of multi-media cables to suit any setup. Whether you're fitting a customized media studio, or simply improving your home entertainment set-up, RS PRO is with you every step of the way.
