F84C-3GD-AP0, Norgren Excelon Plus series 0.01μm G 3/8 0.3bar to 10 bar Pneumatic Filter 1500L/min max with Automatic drain, Фильтр

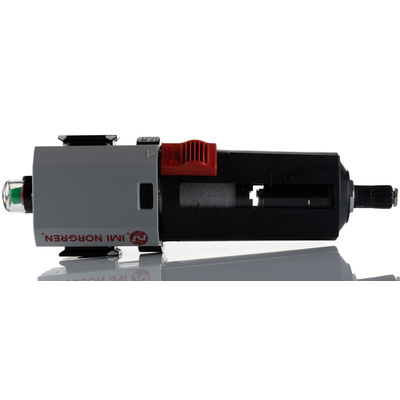

IMI Norgren Pneumatic Filter, 0.01μm Filtration Size, Operating Pressure Range 0.3 to 10 Bar - Excelon Plus Series - F84C-3GD-AP0

Dreaming of squeaky clean airflow in your pneumatic system? Let this pneumatic filter from IMI Norgren make it a reality. It removes pesky contaminants from your air supply to cut the risk of blockages in your tubes and pipes. Filtered waste is stored in a durable PC bowl with an automatic drain, saving you the hassle of manually emptying it. With a filter size of 0.01μm, there's no escape for contaminants, even tiny particles. A maximum supply capacity of 10 bar makes this a practical choice for demanding applications.

Features & Benefits

• Die-cast aluminium body with ABS cover makes it durable and suitable for long-term use
• NBR elastomer material has high resistance to mineral oils and lubricants, which helps ensure optimal performance
• Wide operating temperature margin between -10ºC and +60ºC for use in demanding settings
• Light weight of 380g for easy handling during installation

Applications

• Food production plants
• Measurement and instrumentation devices
• Marine industry

How do I mount this pneumatic filter?

This filter has a G3/8 threaded port that makes it easy to secure and widely compatible with standard pneumatic equipment.

Datasheet F84C-3GD-AP0

Norgren Excelon Plus Air Preparation Brochure
