F84C-4GD-AP0, Norgren Excelon Plus series 0.01μm G 1/2 0.3bar to 10 bar Pneumatic Filter 1500L/min max with Automatic drain, Фильтр

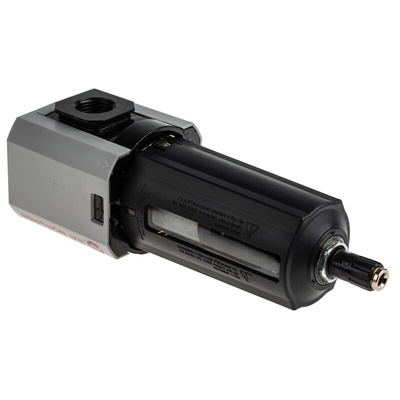

IMI Norgren Pneumatic Filter With Automatic Drain, 0.3 to 10 Bar, 1500L/min Flow Rate - Excelon Plus Series - F84C-4GD-AP0

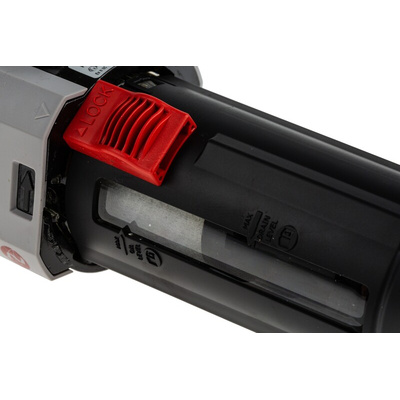

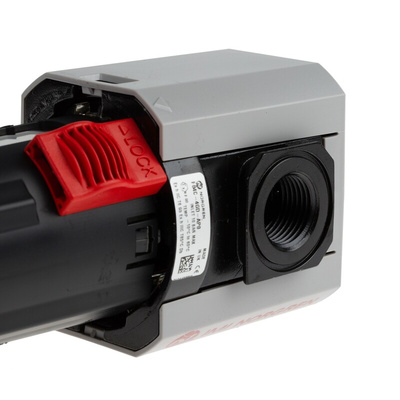

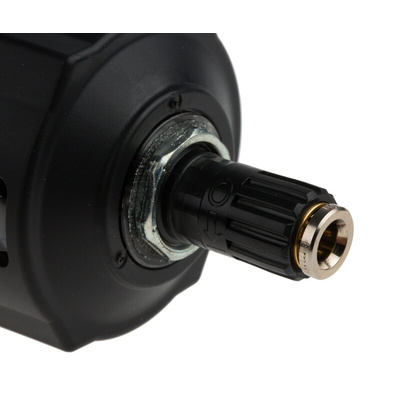

Keep your pneumatic system working efficiently by removing contaminants with this IMI Norgren filter. An operating pressure range between 0.3 and 10 bar makes it suitable for low-pressure applications including food processing and packaging. The filter comes with a metal bowl guard to effectively trap contaminants, while a double-lock mechanism prevents you from accidentally dislodging the bowl. An automatic drain system means condensation is released once it reaches a pre-set level, making this filter suitable for remote applications and hard-to-reach areas.

Features & Benefits

• Operating temperature range between -10°C and +60°C for use in demanding environments
• Bowl is made from polycarbonate, which is durable and resists impact
• Maximum flow rate of 1500L/min (litres per minute) for use in applications with a high flow
• Lightweight at 0.380kg to reduce strain on equipment
• Aluminium body is thermal-resistant to withstand extreme temperatures

Applications

• Drinks production and bottling
• Medical technology
• Marine industry

Is this filter suitable for tiny particles?

Yes – this filter has an extremely small filtration size of 0.01μm (micrometres), so it effectively captures tiny particles to maintain a clean system.

Datasheet F84C-4GD-AP0

Brochure - Excelon Plus Modular Air Preparation for All Industrial Applications

Installation Sheet - Air Preparation Range
