B84G-6GK-AP1-RMG, Norgren Excelon Plus Filter Regulator, 5μm, G 3/4, Automatic, Сборка

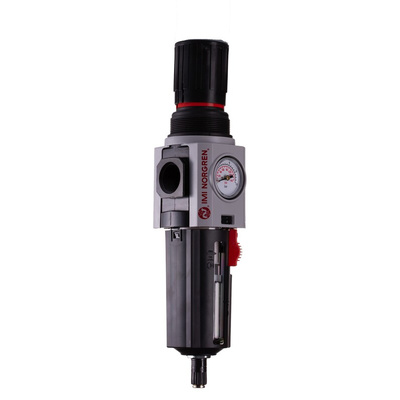

IMI Norgren Filter Regulator, Automatic Drain Type, 0.3 to 10 Bar Operating Pressure - Excelon Plus Series - B84G-6GK-AP1-RMG

For improved performance in your pneumatic system, turn to this filter regulator from IMI Norgren. It boosts efficiency by controlling airflow to maintain the ideal pressure. It also removes contaminants like dust, dirt and water that can disrupt operation and lead to equipment failure. Thanks to its small filtration size of 5μ, the unit removes all particulate matter and more than 98% of the water present in the compressed air supply. A wide operating pressure range of 0.3 to 10 bar makes it a versatile choice. This filter regulator uses a standard G3/4 port connection for widespread compatibility and easy installation.

Features & Benefits

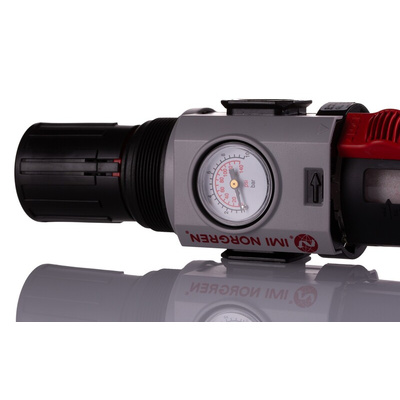

• Integrated gauge for ease of monitoring
• Electrophoretic paint coating for resistance to corrosion and chipping
• PC bowl is resistant to impact and abrasion
• Broad operating temperature range between -10ºC and +60ºC for use in harsh settings

Applications

• Factory automation
• Petrochemicals industry
• Steel production

Is this filter regulator protected against tampering?

Yes, this filter regulator has a double safety lock on the bowl and a push-to-lock adjusting knob to minimise the risk of tampering.

Datasheet B84G-6GK-AP1-RMG

Norgren Excelon Plus Air Preparation Brochure

Instruction Sheet - Air Preparation Range 1/4, 3/8 82 Series, 3/8, 1/2, 3/4 84 Series
