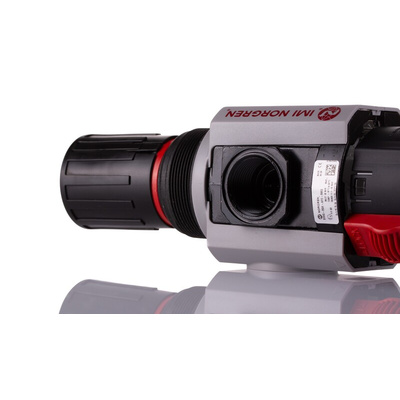

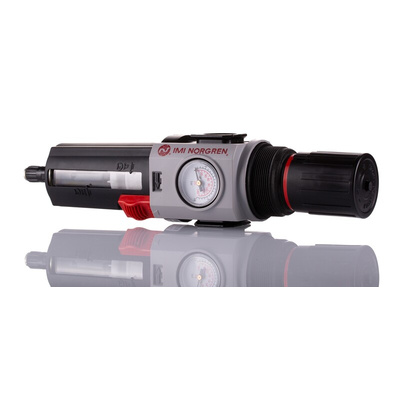

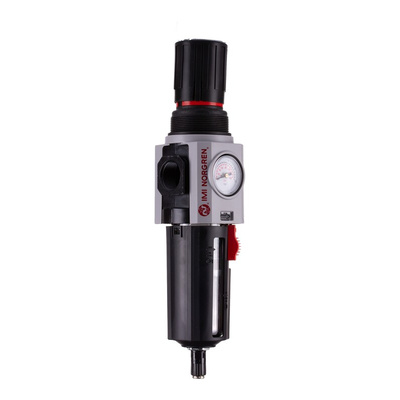

B84G-6GK-AP3-RMG, Norgren Excelon Plus Filter Regulator, 40μm, G 3/4, Automatic, Сборка

IMI Norgren Filter Regulator, 0.3 to 10 Bar Operating Pressure Range, Sintered PP Filter - Excelon Plus Series - B84G-6GK-AP3-RMG

Looking for a staunch workmate to boost efficiency in your pneumatic system? Choose this filter regulator from IMI Norgren. It's a multitasker that packs the functions of two devices into one – removing contaminants and managing the air pressure for clean, consistent flow. This makes it a space-saving solution for setups where there's a squeeze on space. The filter regulator's diaphragm control valve puts you in charge of input pressure and you can control it with a twist of the easy-to-use knob.

• Die-cast aluminium body can withstand impact and corrosion for use in rugged industrial settings
• Fully automatic drain mechanism empties the condensate bowl so you don't have to

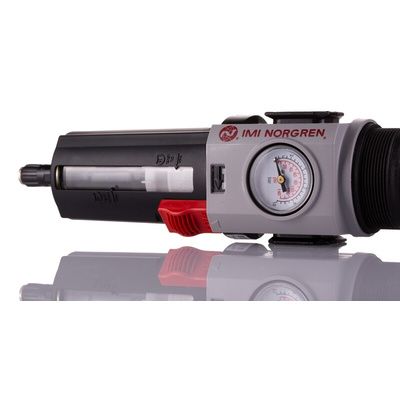

• Integrated gauge for simple pressure monitoring
• 40μm filtration size to catch tiny contaminant particles and prevent blockages
• Wide operating temperature range between -10°C and +60°C for use in demanding conditions

Applications

• Medical equipment
• Foundries
• Consumer electronics production

What's the operating pressure range of this filter regulator?

Reduced weight and size
Double safety lock on bowl
Flush mounted integrated gauge
New filter maintenance system

This unit can deliver between 0.3 and 10 bar of pressure to your pneumatic system, so it's a versatile choice for light-duty to heavy-duty applications.
