F84V-3GN-EPA, Norgren 1500 L/min G 3/8 Pneumatic Separator, 0.3bar to 10 bar, Сепаратор

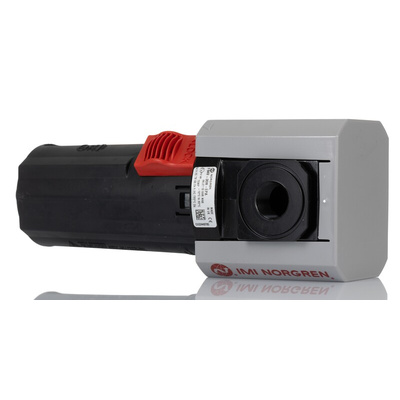

IMI Norgren Pneumatic Separator, Plastic Body, 10 Bar Maximum Operating Pressure - Excelon Plus Series - F84V-3GN-EPA

Are contaminants clogging your system's airways? Flush them out with this IMI Norgren pneumatic separator. It filters oil vapours out of an air supply, sending clean air on its way to keep your process flowing freely. Vapours are trapped on a carbon element to spare you the hassle of manual draining. There's no risk of the unit holding your system up, as it handles flow rates up to 1,500L/min to tackle intense air preparation tasks. Fitting it with existing equipment is no hassle thanks to its standard G3/8 port.

Features & Benefits

• Compact dimensions of 191 (L) x 72 (W) x 70mm (H) to slot into busy setups
• Inline installation cuts need for mounting accessories for quick assembly
• Double safety lock holds bowl tight, stopping accidental disconnection

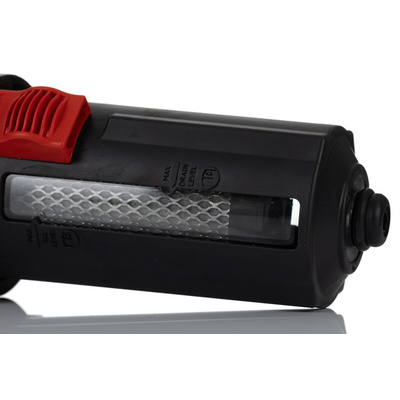

• Transparent bowl clearly shows filter status for quick spot-checks
• Handles challenging operating temperatures between -20°C and +65°C

Applications

• Manufacturing industry
• HVAC systems
• Processing plants

What is this pneumatic separator made from?

It has a die-cast aluminium body, so resists corrosion to provide long-lasting durability in damp areas. The bowl is made from tough polycarbonate that withstands impact.

Datasheet F84V-3GN-EPA

Installation Sheet - Excelon Plus

Catalogue - World-Class Motion & Fluid Control Solutions
